Subaru

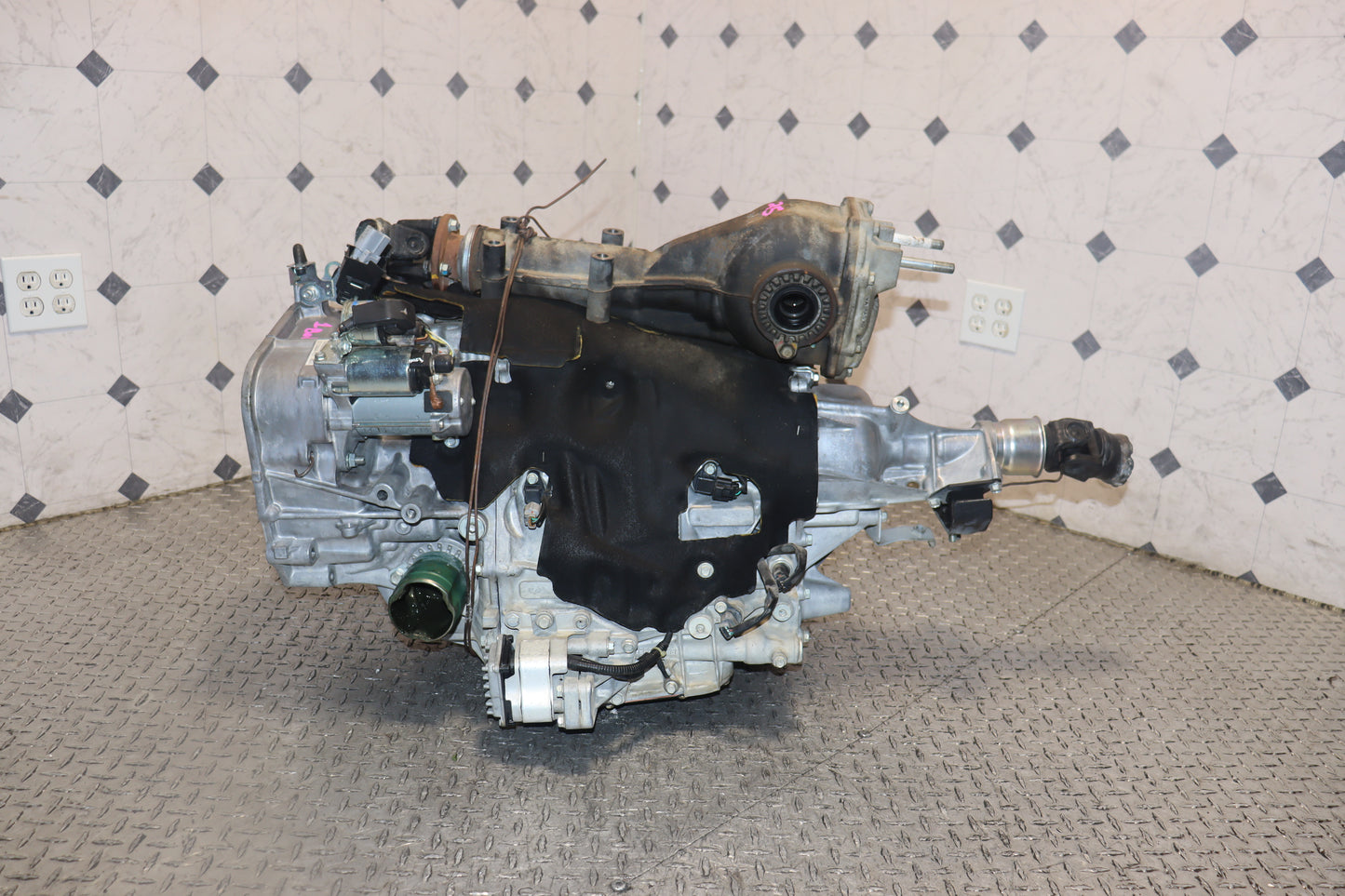

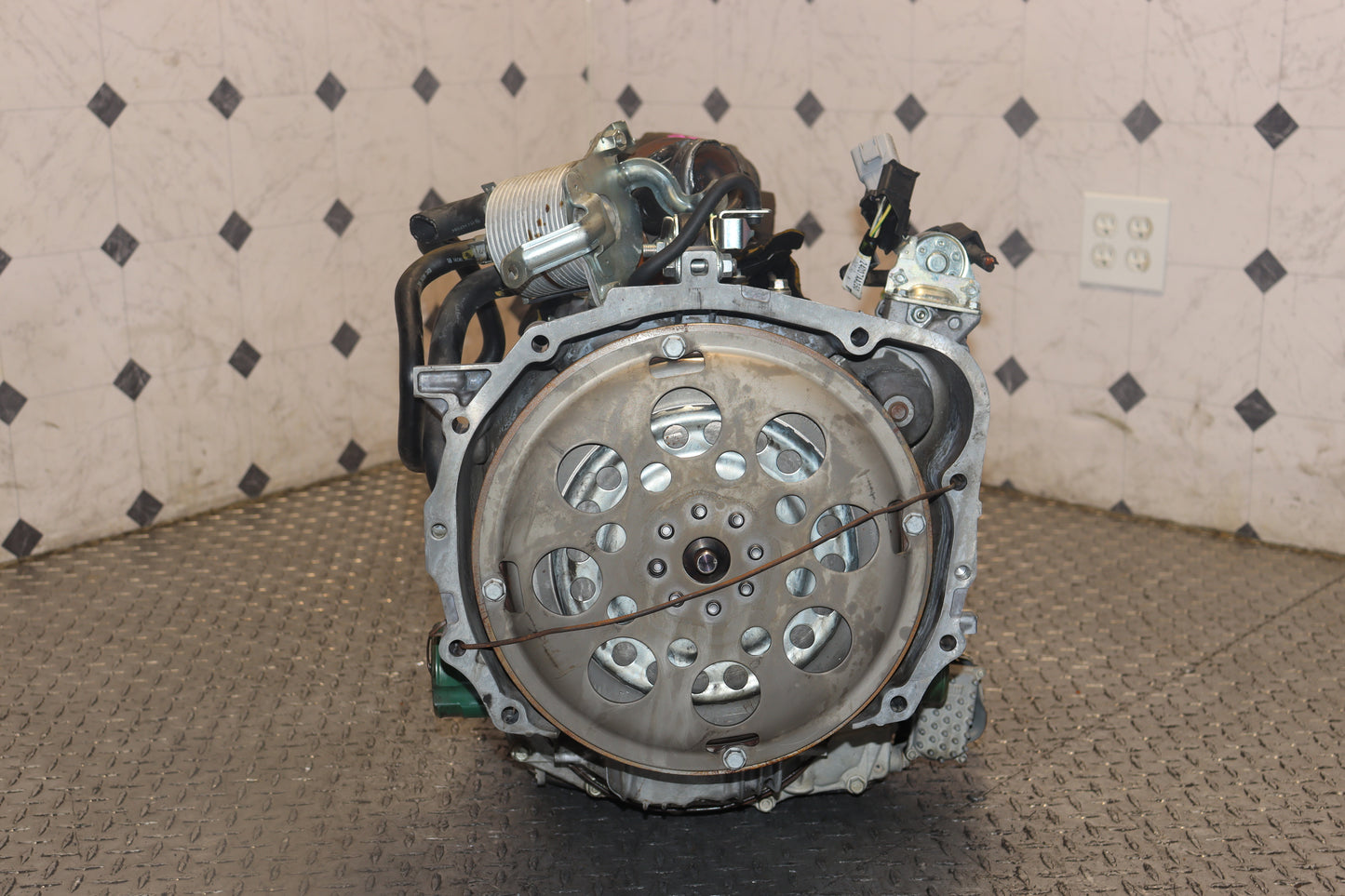

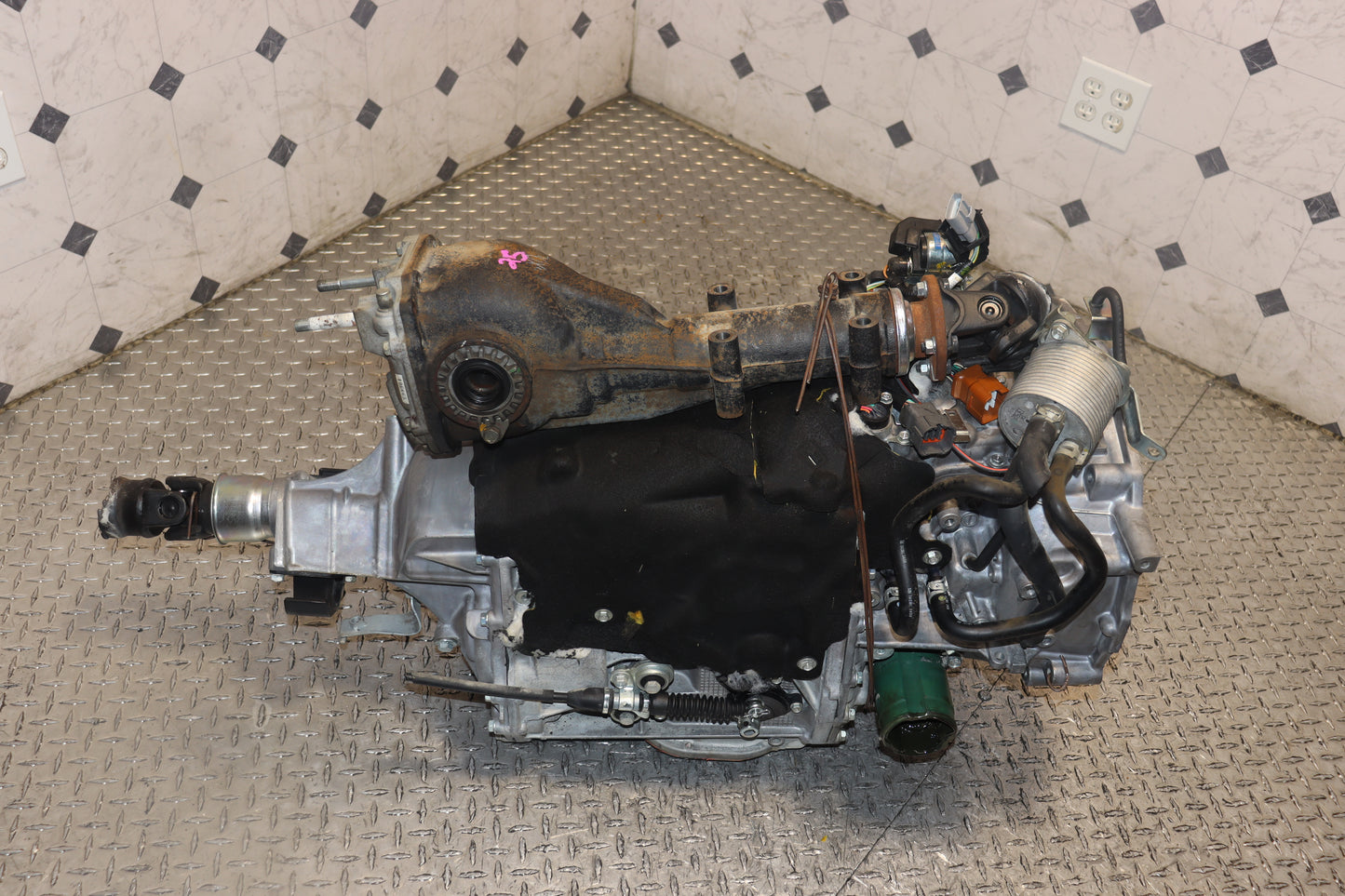

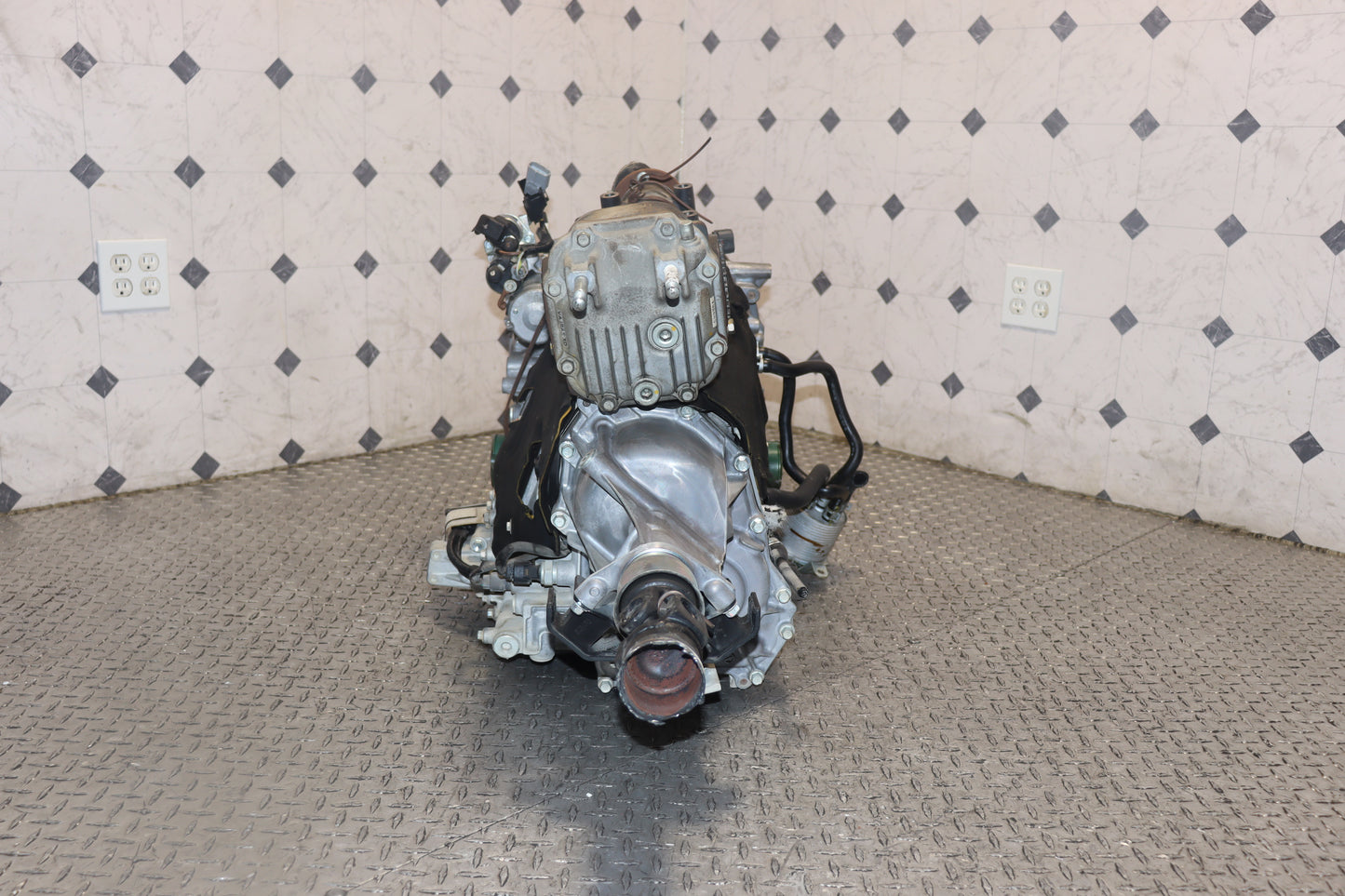

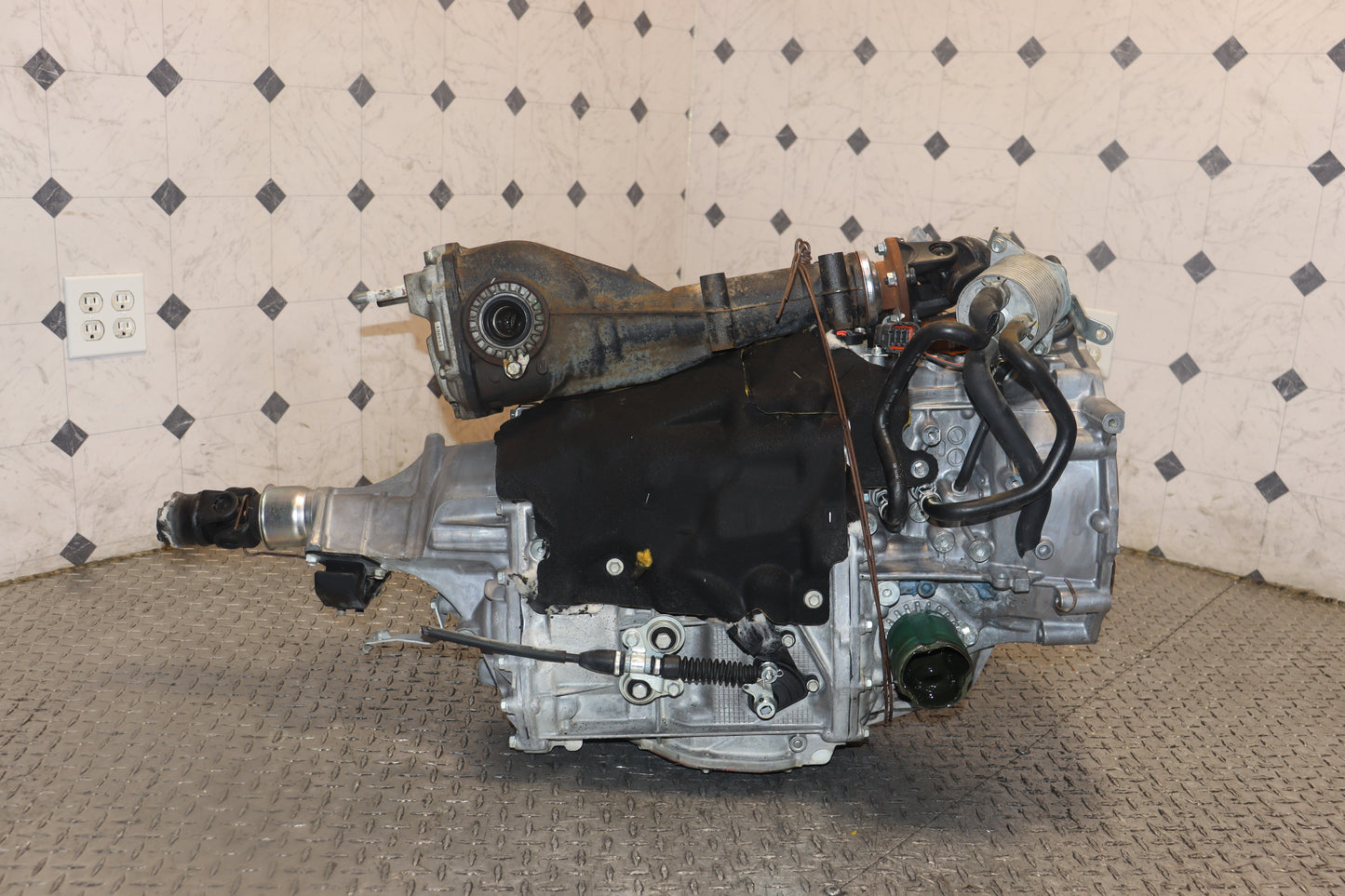

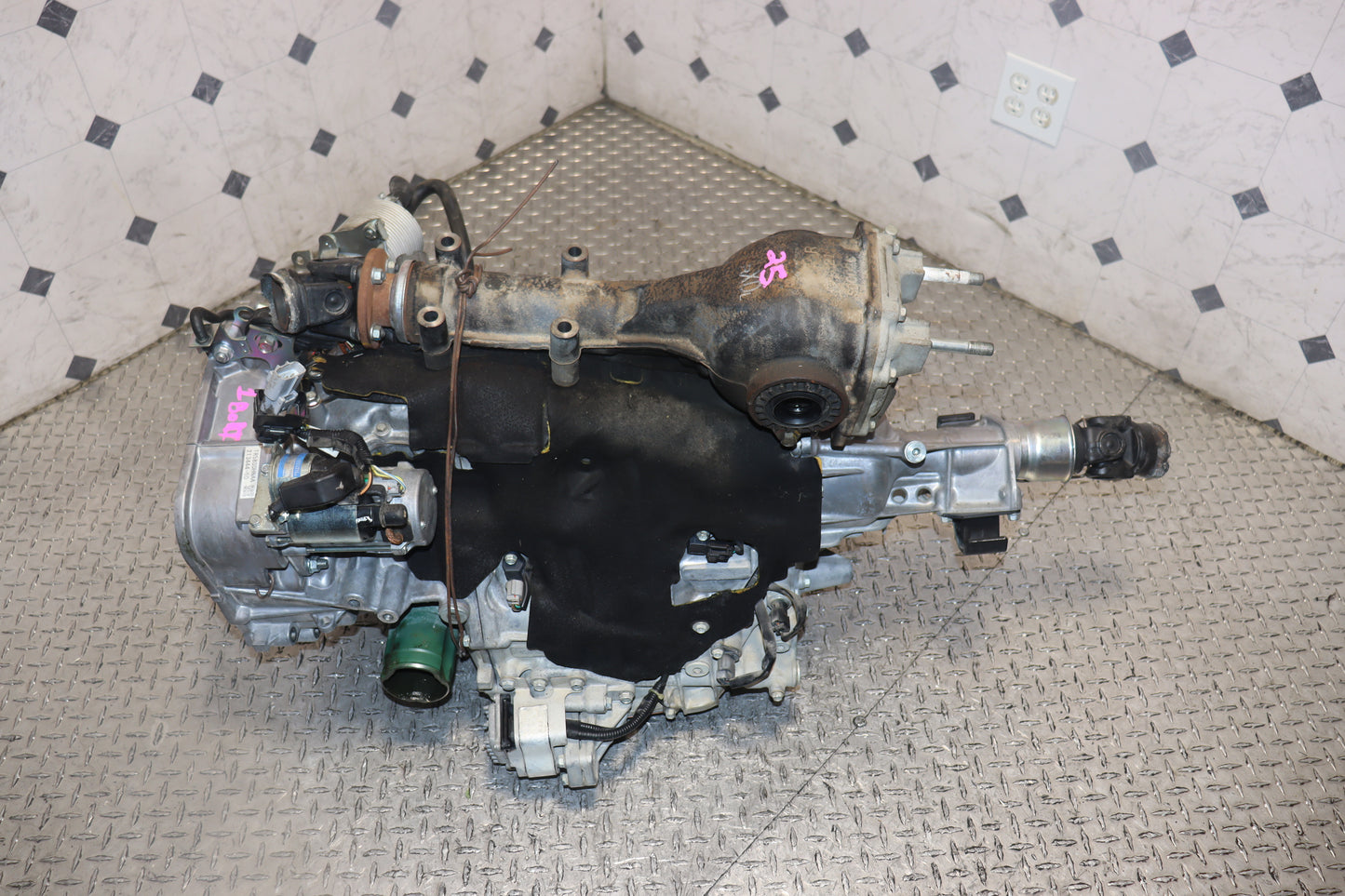

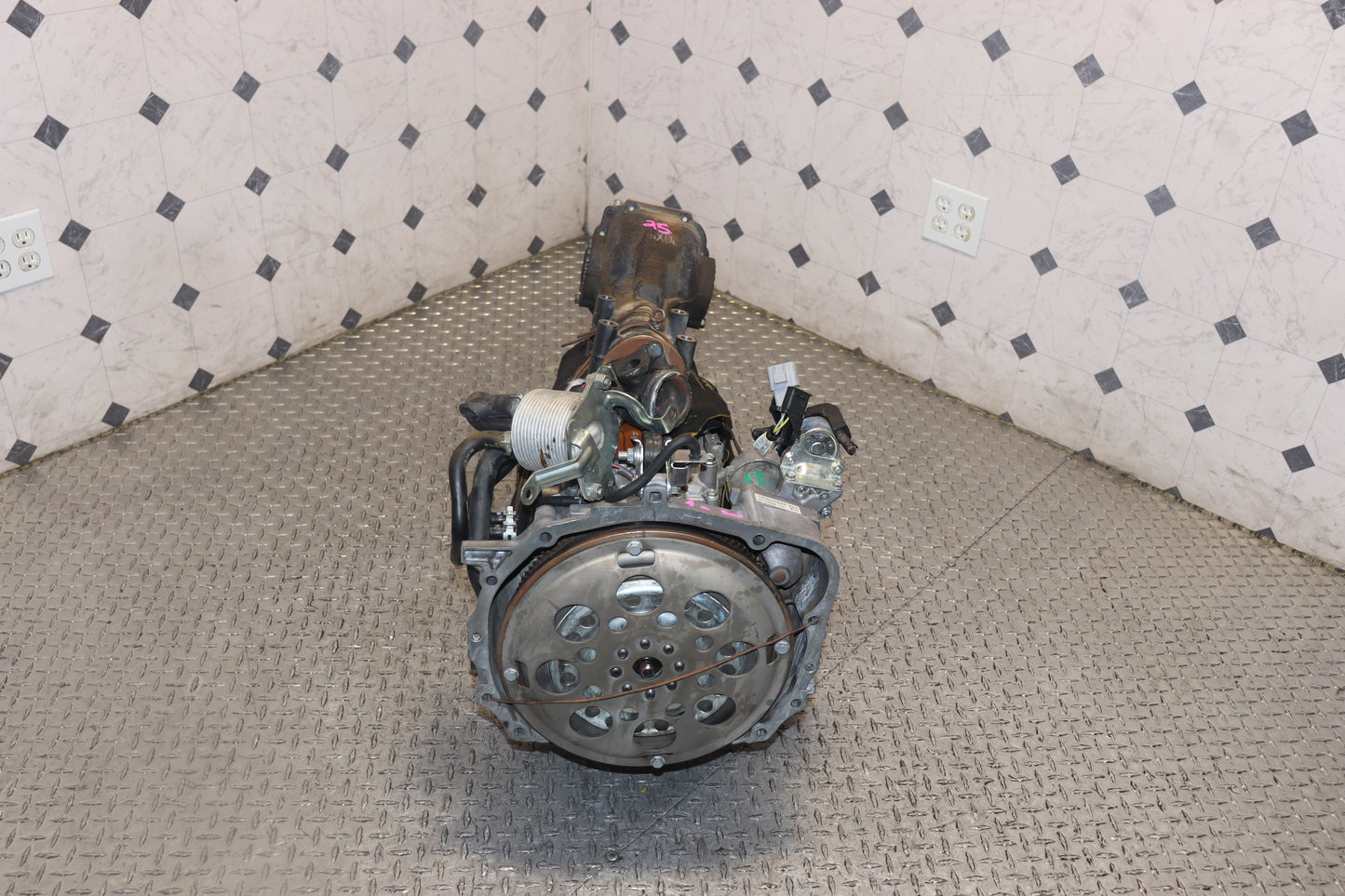

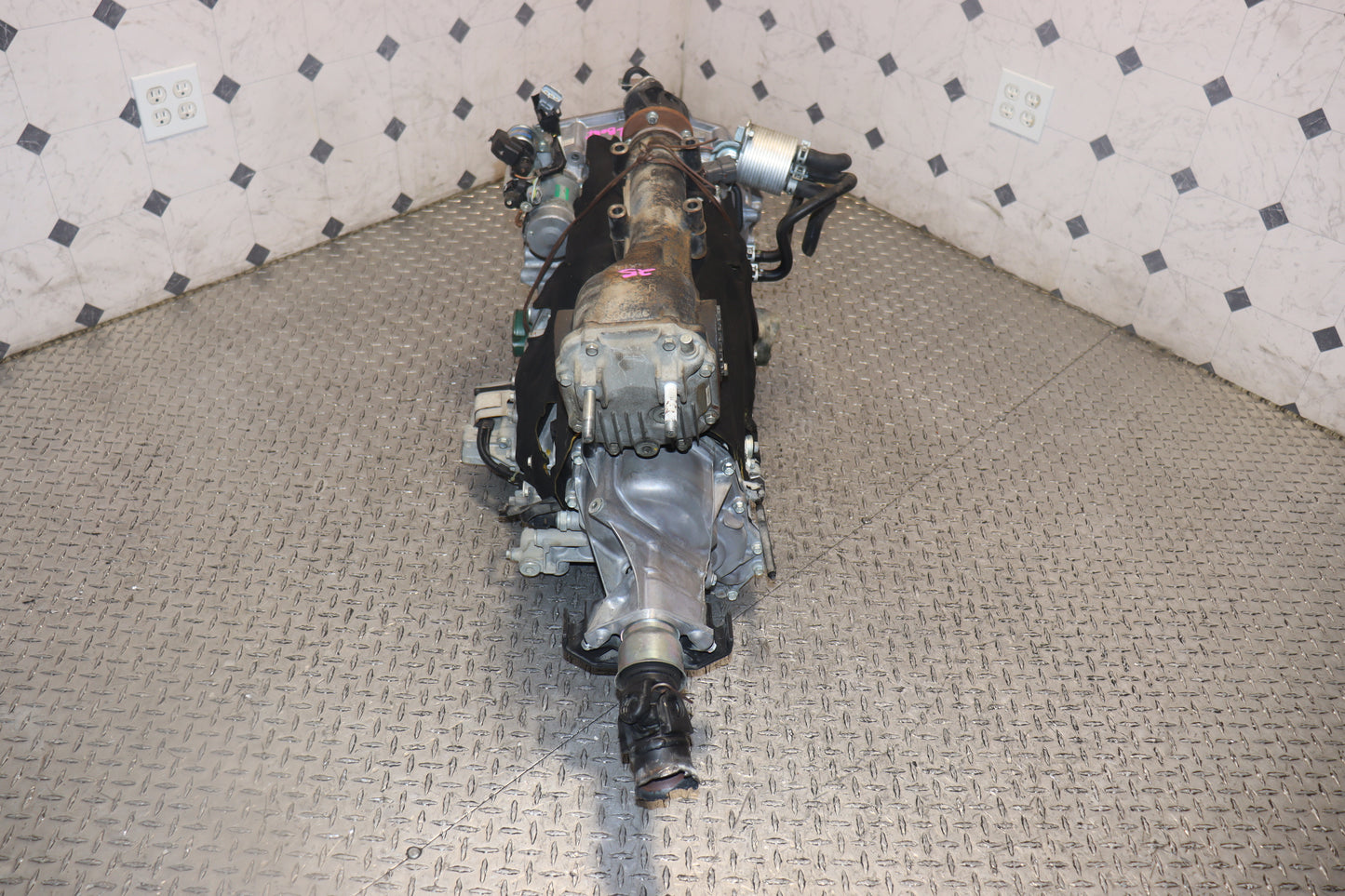

2012 2013 2014 2015 2016 Subaru Impreza 2.0L Automatic AWD CVT Lineartronic Transmission JDM FB20 TR580
$1,149.99$1,600.00
Guaranteed authentic
Warranty coverage
Nationwide freight
Unit details
What you are buying
Vehicle Specifications
-
Transmission Code: TR580 (Lineartronic CVT)
-
Drive Type: All-Wheel Drive (AWD)
-
Engine Compatibility: 2.0L DOHC FB20 (Non-Hybrid)
-
Control System: Computer-controlled continuously variable ratio with electronic AWD transfer clutch.
Vehicle Fitments
-
2012–2016 Subaru Impreza (GP/GJ Chassis, 2.0L Models)
-
Transmission: Direct mechanical replacement for North American TR580 CVT units.
Included Parts
-
Complete CVT Transmission Assembly
-
Torque Converter
-
Internal Shift Solenoids & Valve Body
-
Speed Sensors (Input/Output)
-
Rear Differential Assembly (If Gear Ratio Differs)
Installation & Notes
-
USDM Swap: To ensure 100% plug-and-play compatibility with your vehicle's ECU and TCM, you must transfer your original USDM transmission wiring harness and any external sensors from your old unit to this JDM replacement.
-
TCM Relearn: After installation, a "CVT Learning" procedure is required using a professional diagnostic tool (such as Subaru Select Monitor or a high-end scan tool) to calibrate the new transmission to your vehicle's computer.
-
Fluid Requirement: Use only genuine Subaru CVTF-II (Green) fluid. Using standard automatic transmission fluid (ATF) or incorrect CVT fluid will cause immediate internal damage to the chain and pulleys.
-
Maintenance: It is highly recommended to replace the torque converter seal, axle seals, and the CVT oil cooler O-rings while the transmission is out of the vehicle to prevent future leaks.
