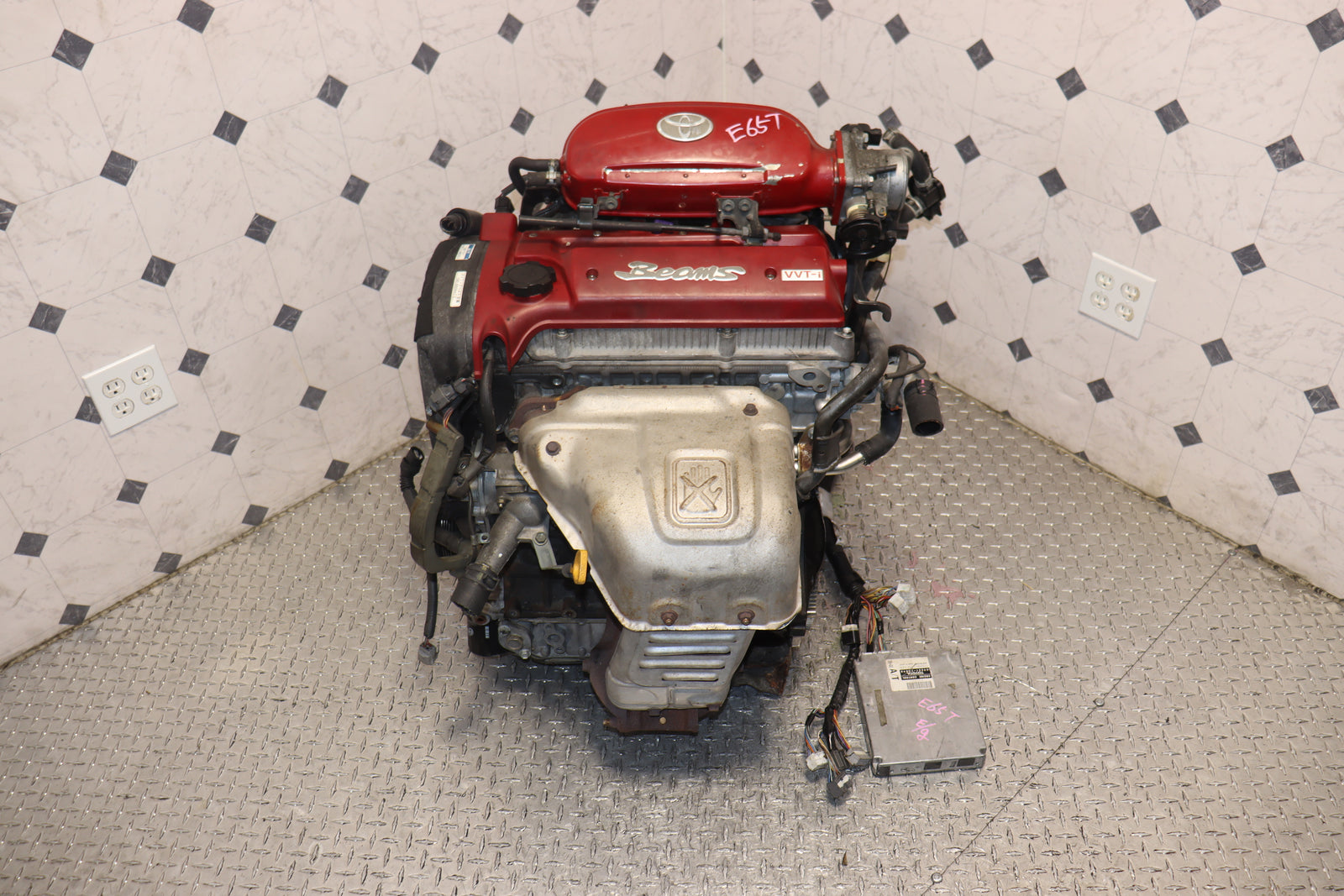

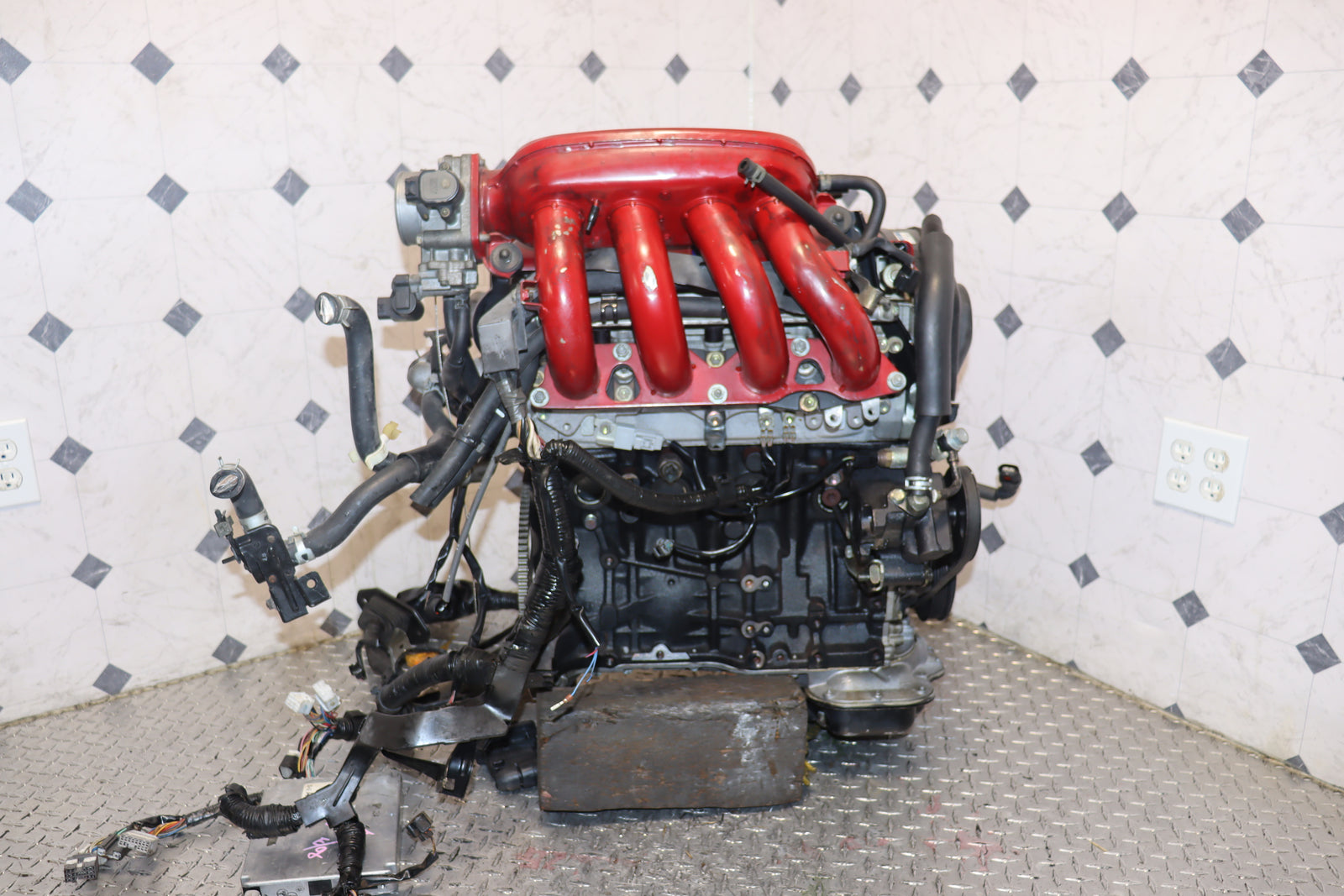

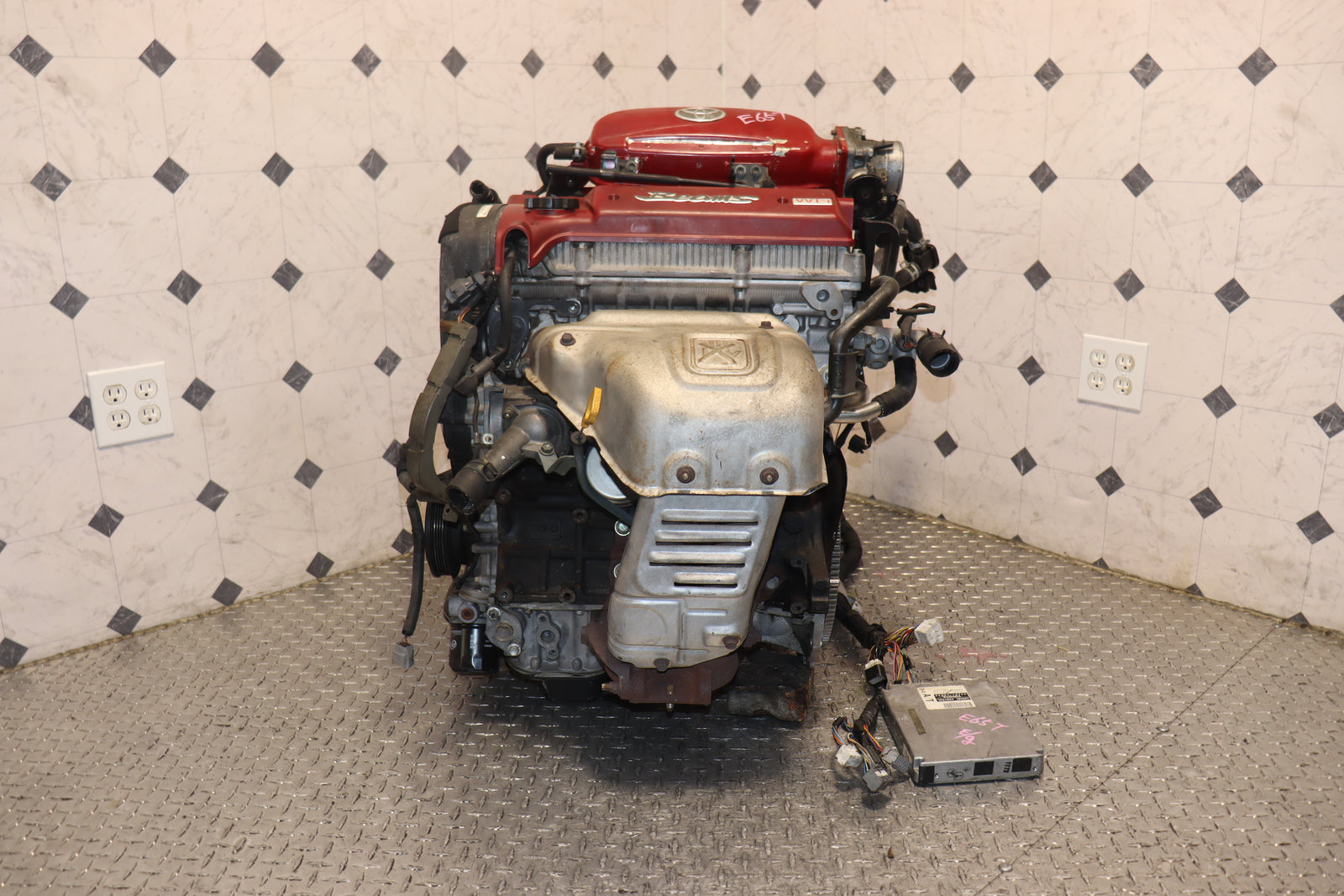

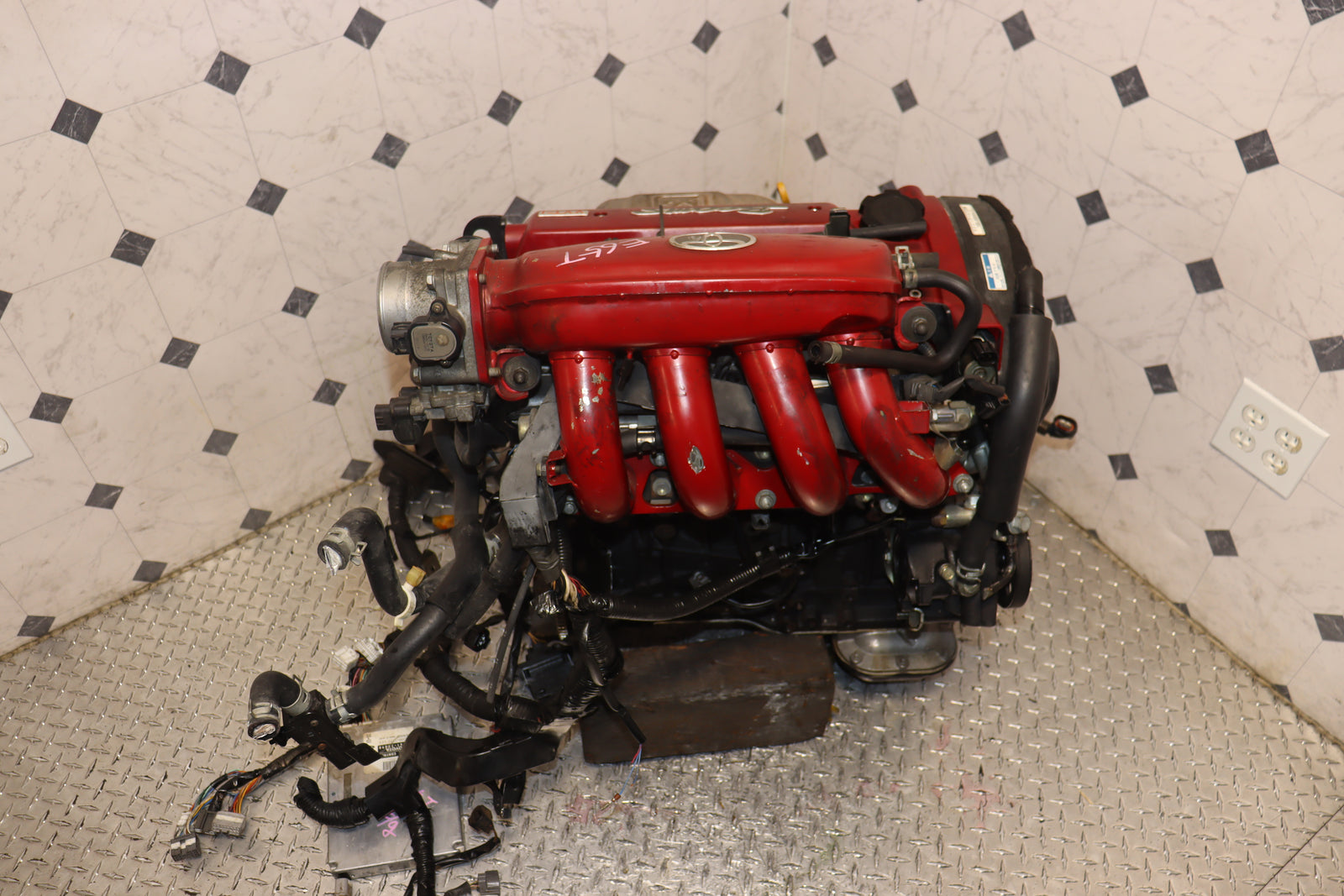

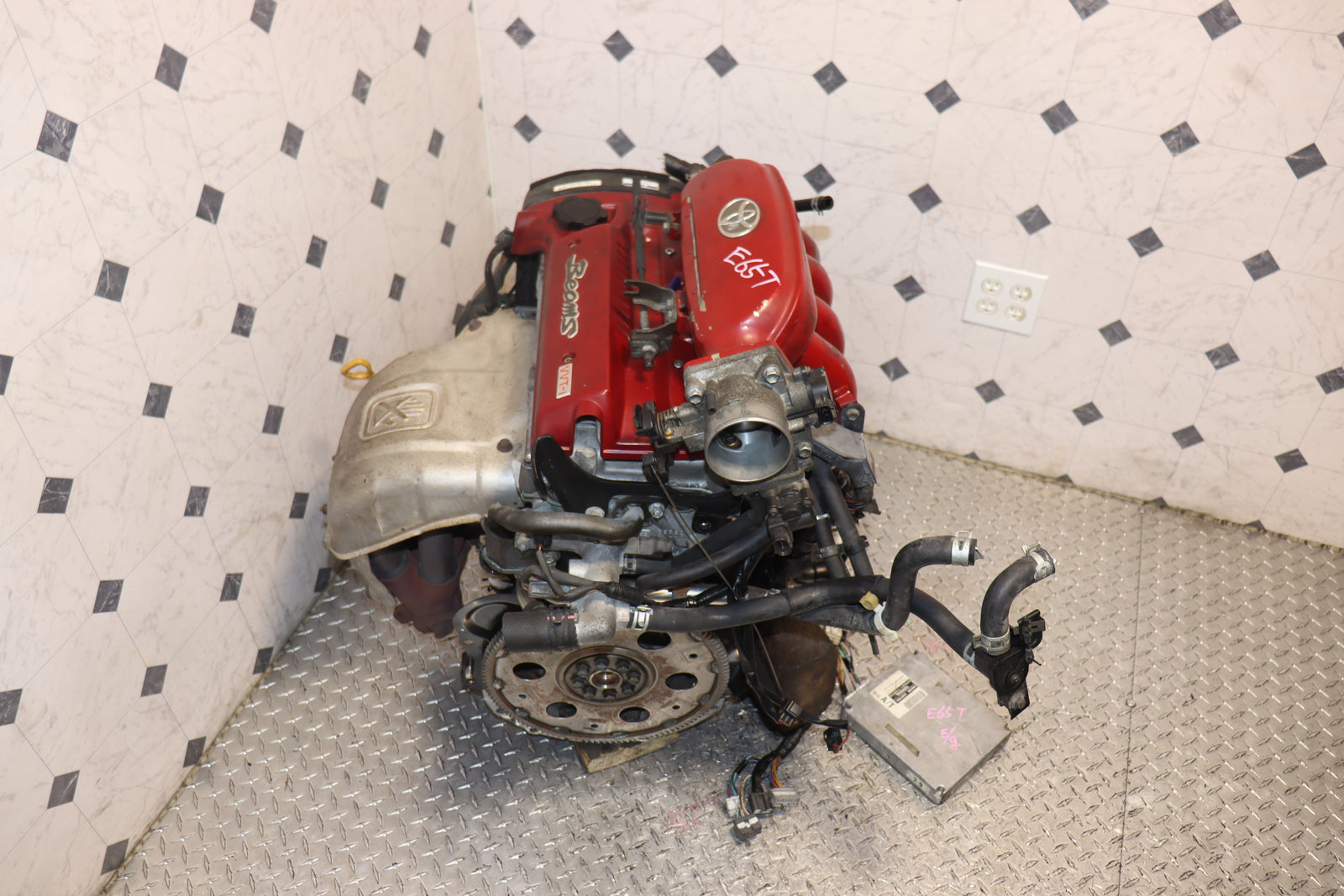

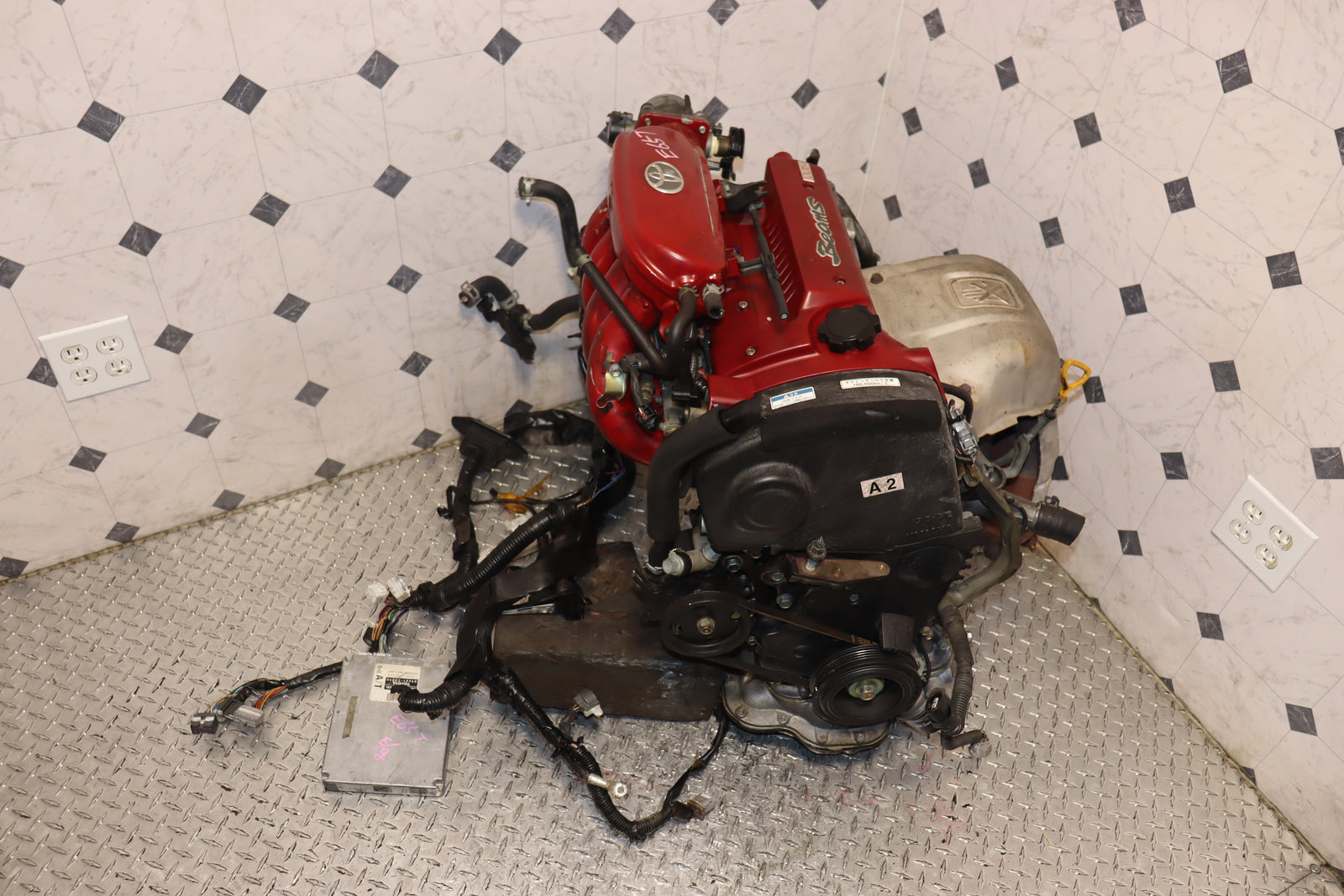

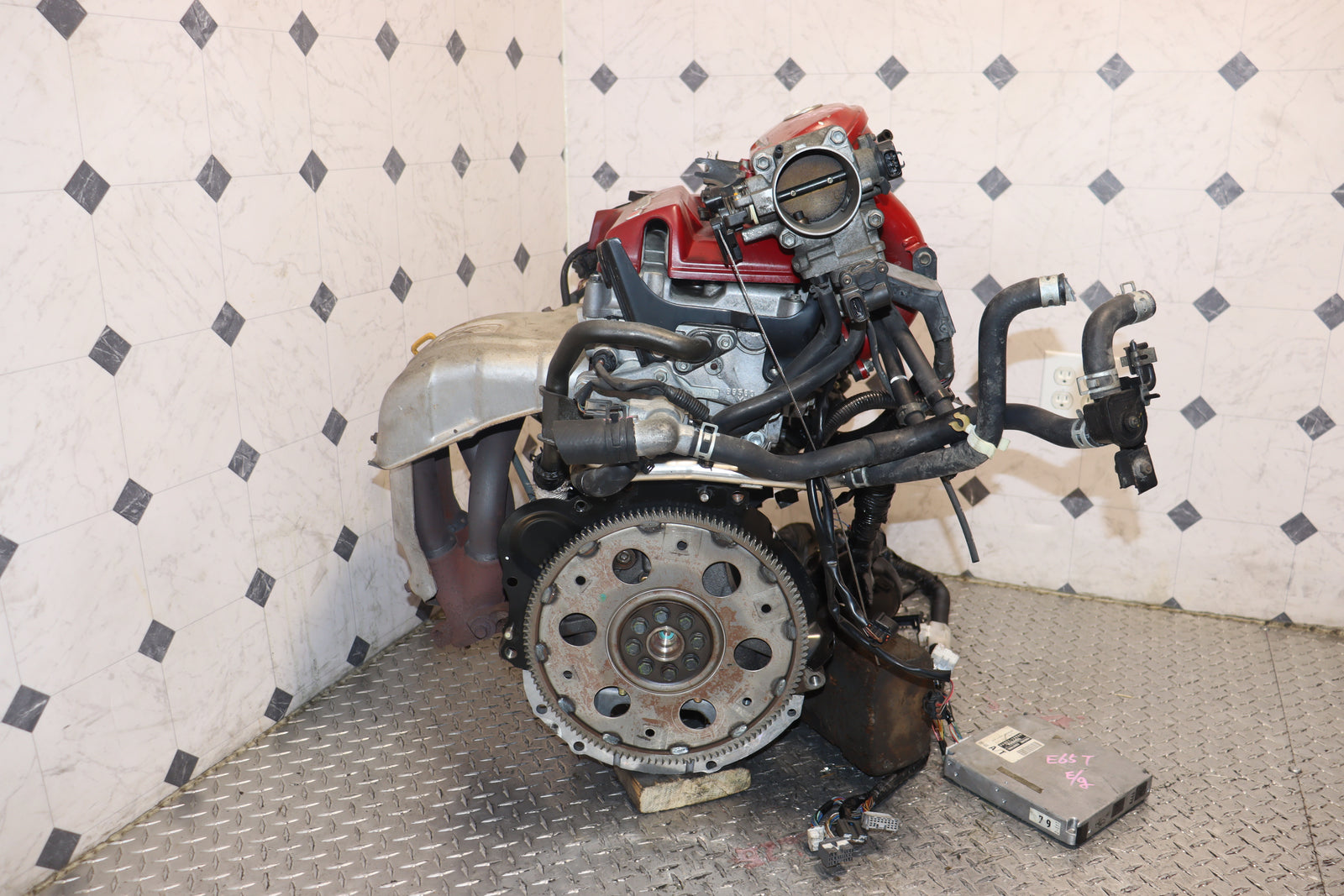

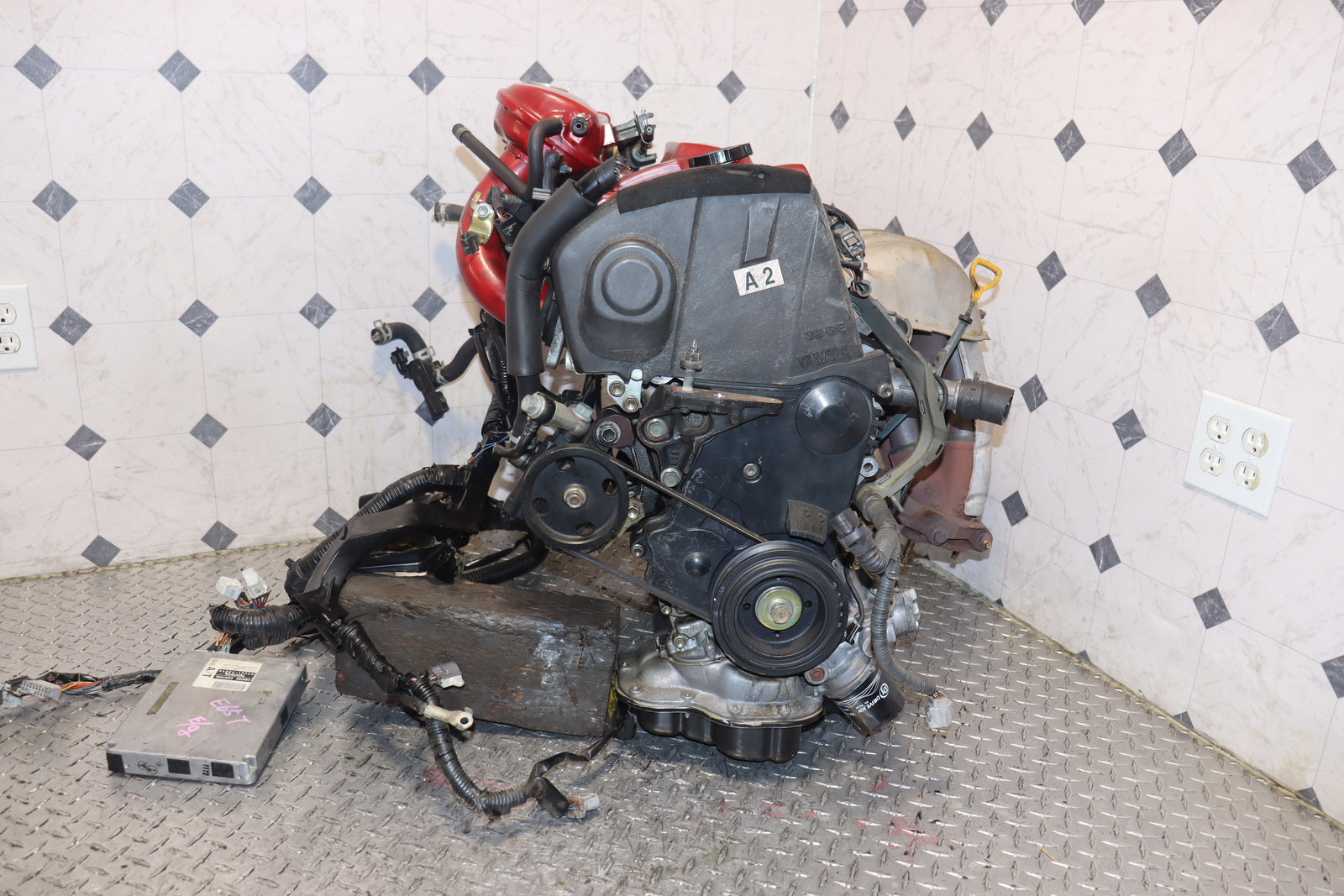

Toyota Celica SS-III ST202 3SGE JDM Engine | 2.0L Inline-4 Cylinder DOHC VVT-i Red Top Motor
In Stock
1 Left
Sale price
$2,499
Regular price
$2,699
Save $200 (7%)
Make:
Toyota
Product Fitment:
TOYOTA CELICA SS-III ST202
Mileage:
48K
Engine Design:
Inline-4
,
DOHC
Engine Type:
Gas
Warranty:
90 Days
Shop Now, Pay Later with Shop Pay
Shop now and pay later with Shop Pay. Split your purchase into easy monthly payments—no fees, no surprises.
Free Local Delivery
Enjoy fast and free delivery within our local area, ensuring your parts arrive quickly, safely, and hassle-free.
90 Days Warranty
90-day warranty for non-performance engines, 30 days for performance. Covers internal parts, excludes labor. Read more
Pickup at JDM SEATTLE
Usually ready in 1 hour View store information
Product Information
Toyota Celica SS-III ST202 3SGE JDM Engine | 2.0L Inline-4 Cylinder DOHC VVT-i Red Top Motor
| Feature | Details |
| Engine Code | 3S-GE (BEAMS Red Top) |
| Displacement | 2.0 Liters (1,998 cc) |
| Configuration | Inline 4-Cylinder DOHC 16V |
| Valvetrain | VVT-i (Intake side) |
| Horsepower | 200 hp @ 7,000 rpm |
| Torque | 152 lb-ft @ 6,000 rpm |
| Compression Ratio | 11.0:1 (High Compression) |
| Redline | 7,200 RPM |
Vehicle Fitments
This JDM 3S-GE Red Top long block is the factory-correct replacement or performance upgrade for:
-
1997-1999 Toyota Celica SS-III (ST202 Chassis - Direct Replacement)
-
1994-1999 Toyota Celica ST202 (Performance upgrade for lower trims)
-
1991-1995 Toyota MR2 (SW20) (Popular high-revving swap candidate)
-
1990-1999 Toyota RAV4 (Sport-oriented performance swap)
Note: This is a Red Top BEAMS (Front-Wheel Drive orientation). If you are looking for the "Black Top" Dual VVT-i engine for an Altezza/SXE10 (Rear-Wheel Drive), please see our other listings.
Installation & Technical Notes
The BEAMS 3S-GE is a high-compression, interference engine. To ensure a successful installation and maintain peak performance, follow these technical guidelines:
-
Long Block Conversion: This sale includes the engine block, cylinder head, and "Red Top" valve cover. For swaps into non-SS-III vehicles, you will require the BEAMS-specific ECU, MAF sensor, and engine wiring harness to operate the VVT-i system and fuel maps correctly.
-
Exhaust Manifold: The BEAMS head features unique exhaust port spacing. Use the included JDM tubular manifold or a custom BEAMS-specific header for optimal flow.
-
Fuel Requirement: Due to the 11.0:1 compression ratio, this engine requires 91-93 octane premium fuel. Using lower grades will result in timing retard and loss of VTEC-like power delivery.
-
Essential Maintenance: We strongly recommend replacing the following parts before installation:
-
Timing Belt & Tensioner: Critical maintenance for an interference high-RPM motor.
-
Spark Plugs: NGK Laser Platinum (BKR6EP-11 or heat range 7 for track use).
-
Engine Oil: 5W-30 or 10W-30 High-Quality Full Synthetic.
-
Camshaft Seals: Replace while the timing belt is off to prevent oil leaks into the VVT-i pulley.
-
-
ECU Adaptation: Ensure the electrical grounds are secure. The BEAMS ECU is sensitive to voltage drops, which can cause erratic VVT-i engagement.
