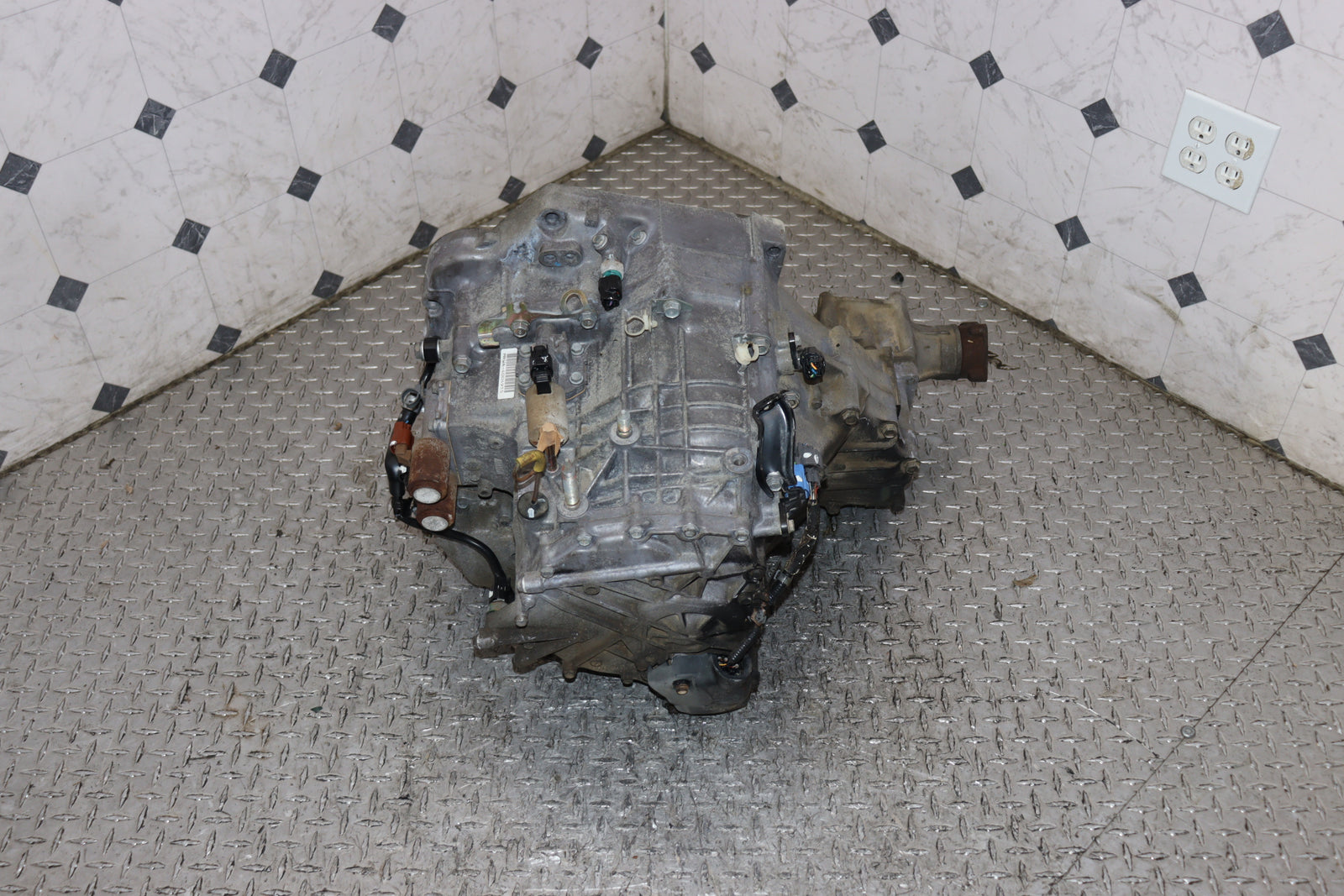

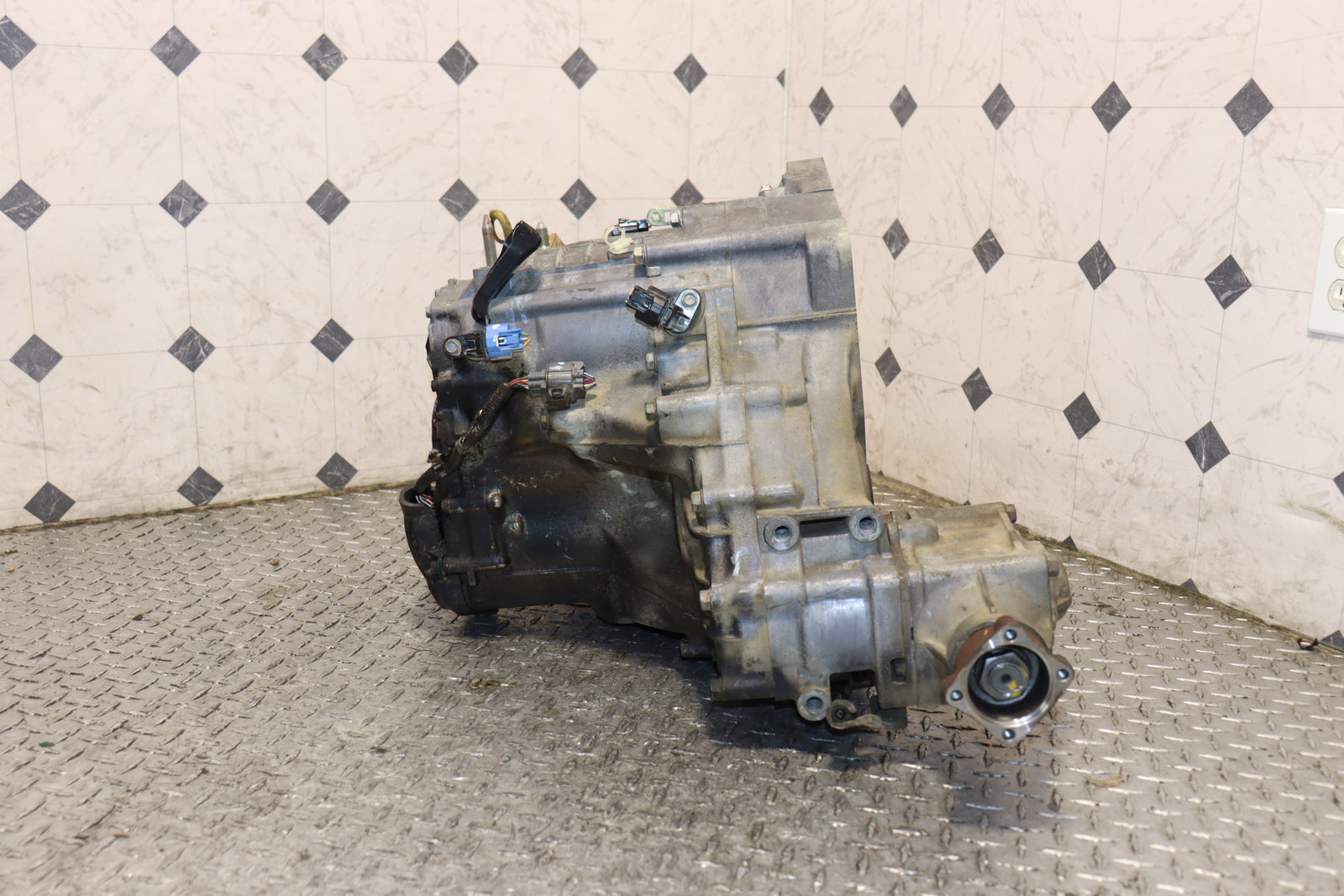

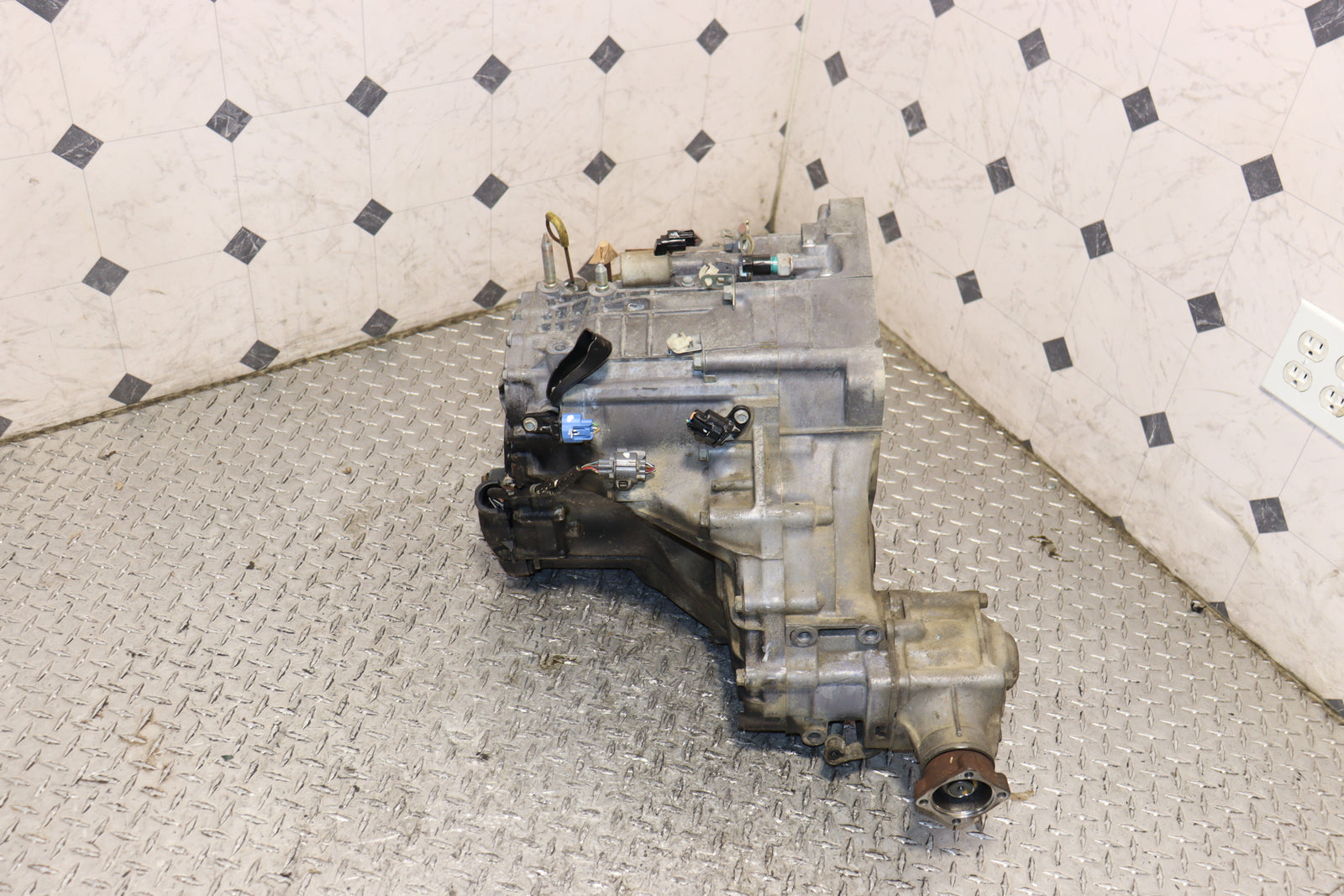

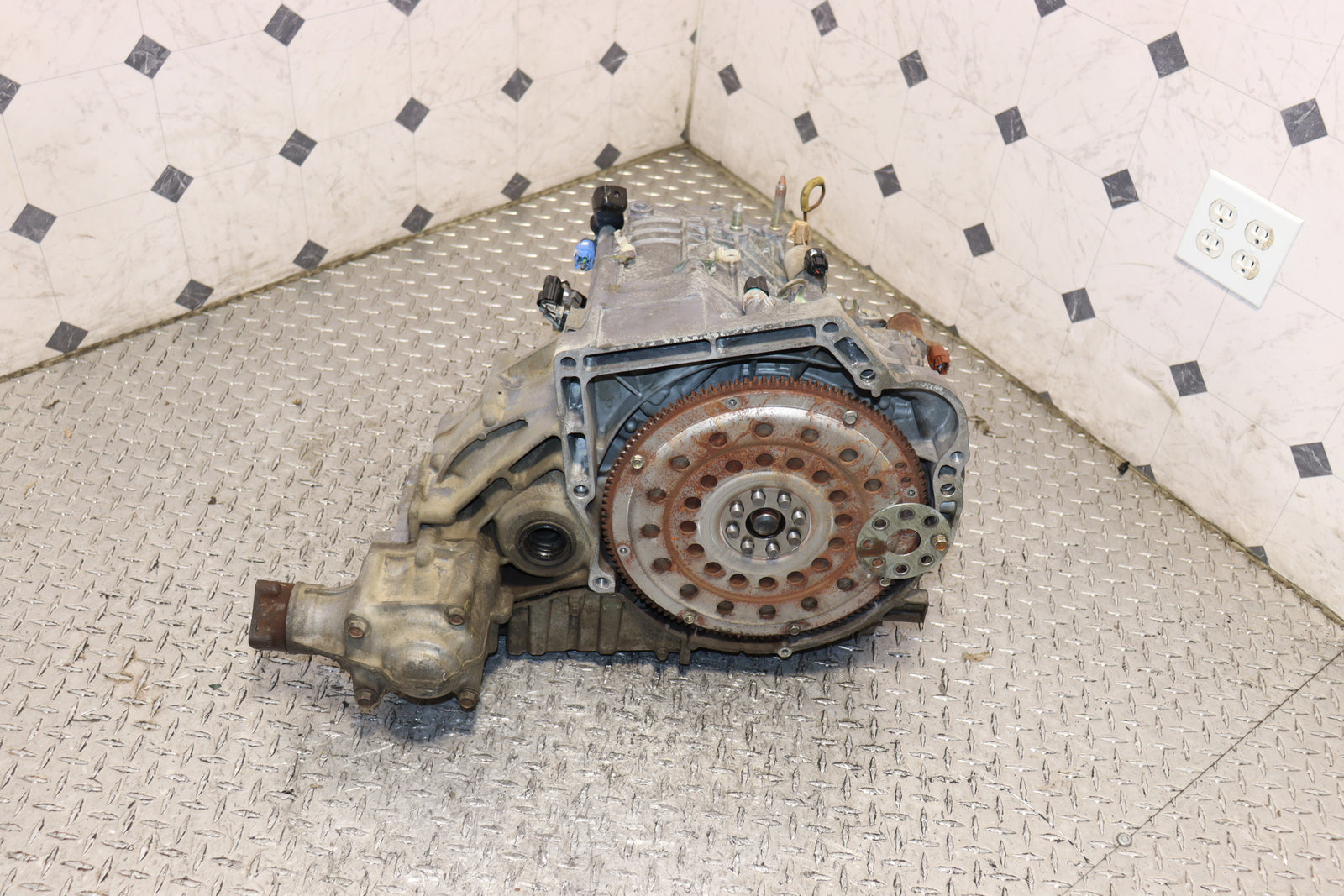

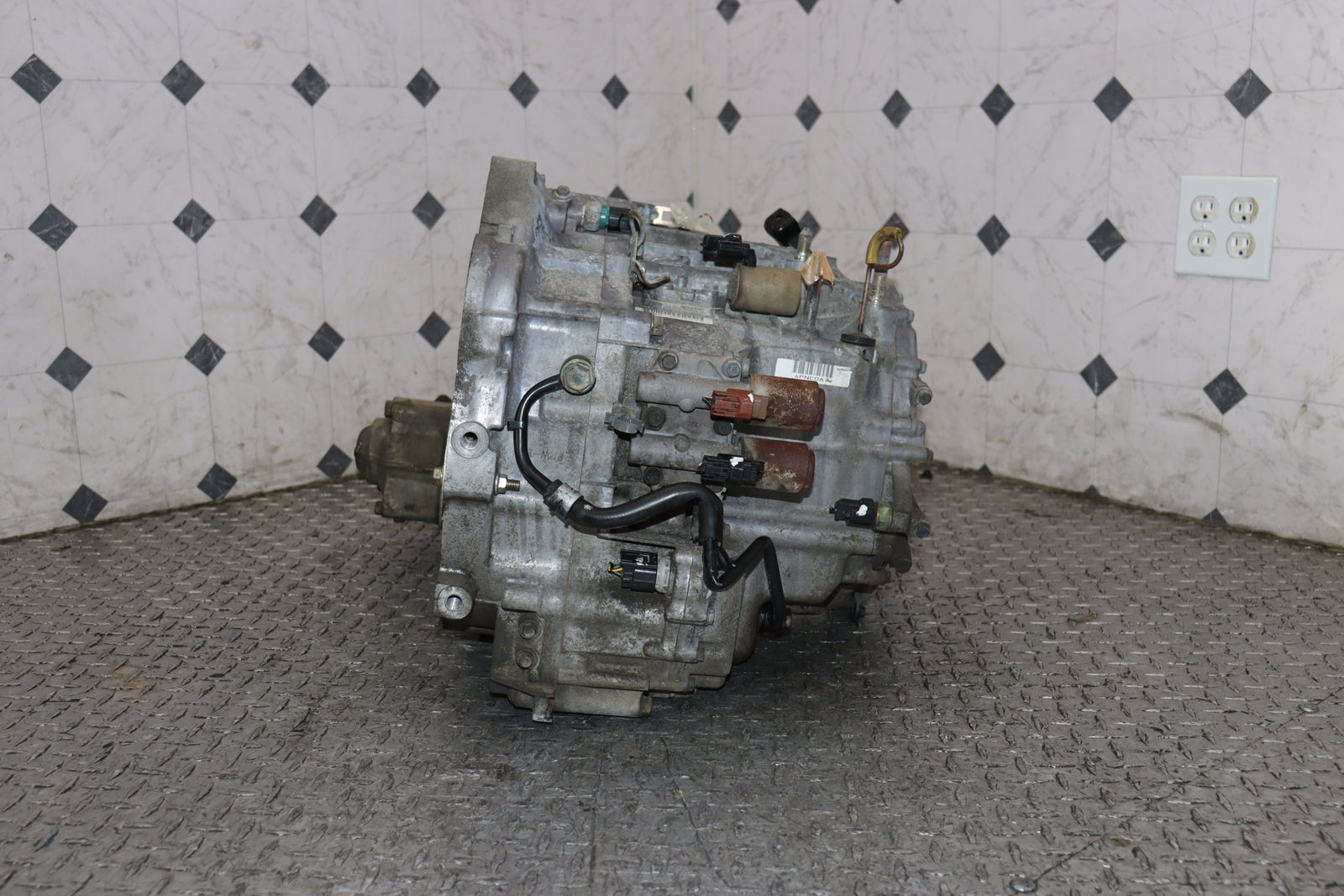

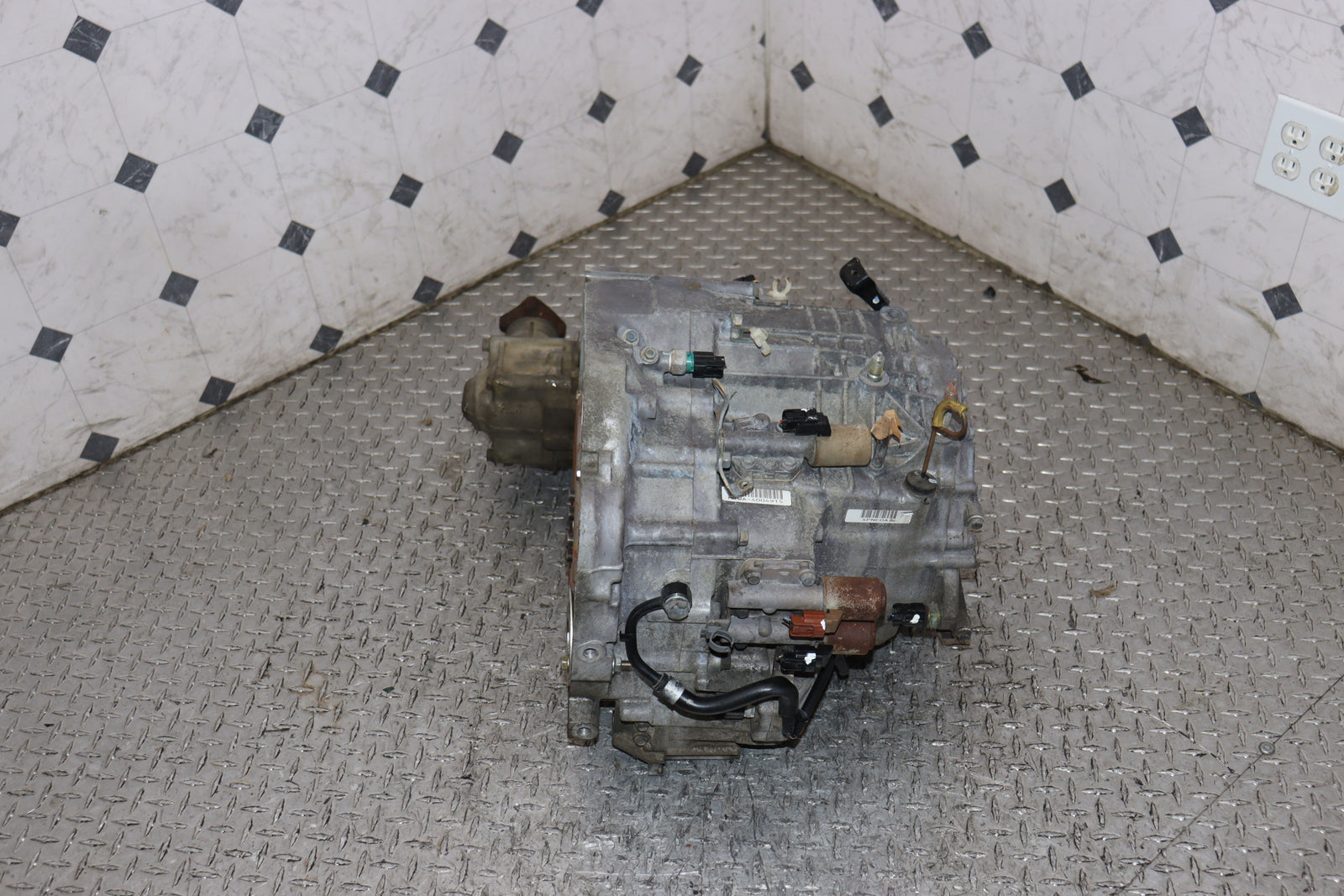

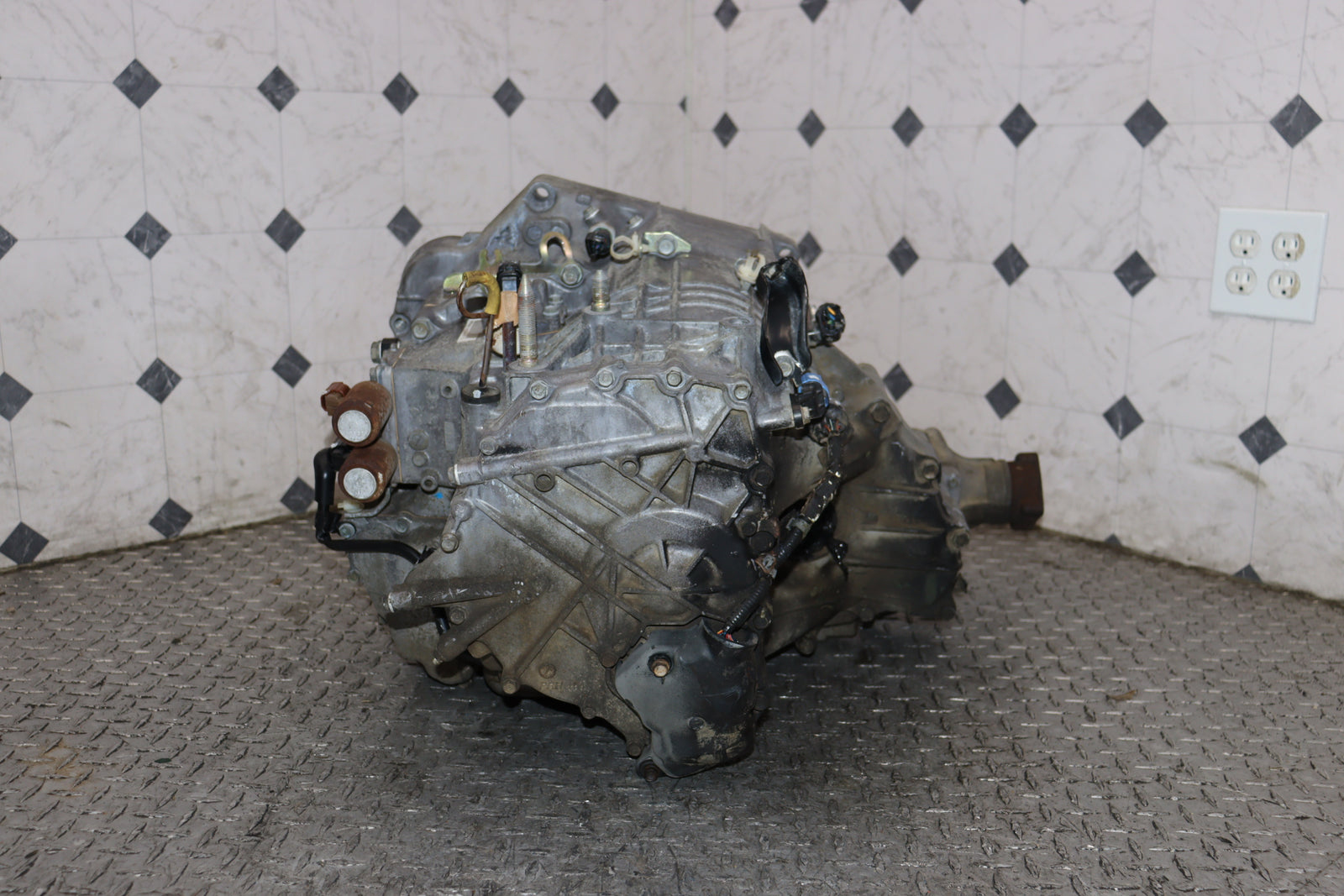

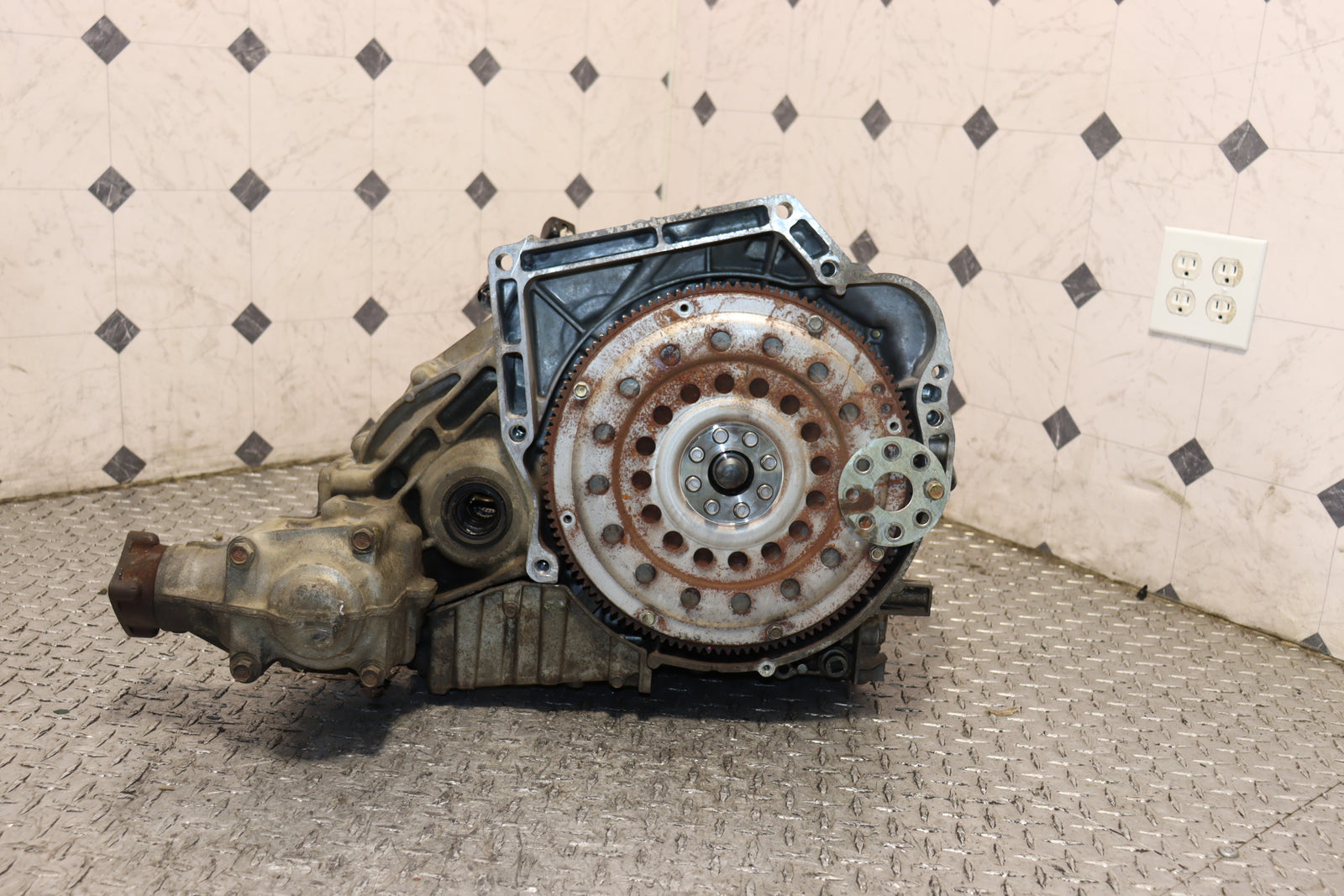

2002 2003 2004 Honda CR-V 2.4L AWD 4 Speed Automatic Transmission JDM K24A MRVA
2002 2003 2004 Honda CR-V 2.4L AWD 4 Speed Automatic Transmission JDM K24A MRVA
2002 2003 2004 Honda CR-V 2.4L AWD 4 Speed Automatic Transmission JDM K24A MRVA
2002 2003 2004 Honda CR-V 2.4L AWD 4 Speed Automatic Transmission JDM K24A MRVA
2002 2003 2004 Honda CR-V 2.4L AWD 4 Speed Automatic Transmission JDM K24A MRVA
2002 2003 2004 Honda CR-V 2.4L AWD 4 Speed Automatic Transmission JDM K24A MRVA
2002 2003 2004 Honda CR-V 2.4L AWD 4 Speed Automatic Transmission JDM K24A MRVA
2002 2003 2004 Honda CR-V 2.4L AWD 4 Speed Automatic Transmission JDM K24A MRVA
← Swipe for 8 photos →
Sold out • We can source another unit
Honda

2002 2003 2004 Honda CR-V 2.4L AWD 4 Speed Automatic Transmission JDM K24A MRVA

$799.99
Call to source this unit
Call 253-536-6855 Text 253-709-9061
Guaranteed authentic
Warranty coverage
Nationwide freight
Unit details

What you are buying

Eliminate transmission slipping, harsh shifting, and gear failures with this premium JDM 2002-2004 Honda CR-V AWD 4-Speed Automatic Transmission. Imported directly from Japan, this genuine low-mileage powertrain component carries the specific MRVA transmission code and is engineered to pair perfectly with the 2.4L K24A engine. Hand-selected from clean Japanese donor vehicles, these units have significantly fewer miles (approximately 45k-60k) compared to domestic high-mileage salvage options. Built to rigorous factory specifications, this authentic JDM All-Wheel Drive transmission provides a durable, cost-effective alternative to expensive US-spec dealer rebuilds, restoring original drivetrain efficiency and smooth performance.



Vehicle Specifications

  • Year Range: 2002, 2003, 2004

  • Make & Model: Honda CR-V (Second Generation / RD5 Chassis)

  • Transmission Code: MRVA (JDM AWD Variant)

  • Compatible Engine: Honda 2.4L DOHC i-VTEC K24A (K24A1)

  • Transmission Type: 4-Speed Automatic

  • Drivetrain Layout: AWD / 4WD (All-Wheel Drive / 4-Wheel Drive)

  • Origin: Japan (Genuine OEM Japanese Domestic Market Import)

  • Condition: Premium Used Import (Inspected, cleaned, and torque converter bench-tested)

Vehicle Fitments

  • Direct US-Spec Replacement: 2002-2004 Honda CR-V AWD models equipped with the 2.4L 4-Cylinder engine and matching automatic drivetrain setup.

  • Chassis Compatibility: Fits RD5, RD6, and RD7 generation 2 body platforms requiring the 4-speed electronic automatic configuration.

Included Parts

  • Transmission Core: Complete JDM MRVA 4-Speed Automatic AWD Gearbox Case Assembly

  • Torque Converter: Factory-matched heavy-duty torque converter (inspected and included)

  • Transfer Case Unit: Attached JDM AWD rear output/transfer gear section

  • Sensors & Solenoids: Electronic shift solenoids, vehicle speed sensors, and plug receptors (left intact for installation convenience)

Installation & USDM Drop-In Notes

  • Sensor & External Component Swap: While the internal gearing, torque converter, and main housing are identical to the domestic unit, you may need to transfer your original US-spec outer wiring harness, gear range selector switch, and select external sensors to guarantee a direct plug-and-play match with your vehicle's factory ECU computer.

  • Fluid Requirement: Always thoroughly flush your CR-V's external transmission cooler lines and radiator core before firing up the new unit. Refill exclusively with genuine Honda ATF DW-1 fluid to ensure proper hydraulic line pressure and prevent clutch damage. Do not use generic multi-vehicle fluids.

  • Maintenance Recommendation: For a long-term, leak-free repair, it is highly advised to replace the output axle seals, torque converter input shaft seal, and the engine-side rear main seal while the transmission is detached.
