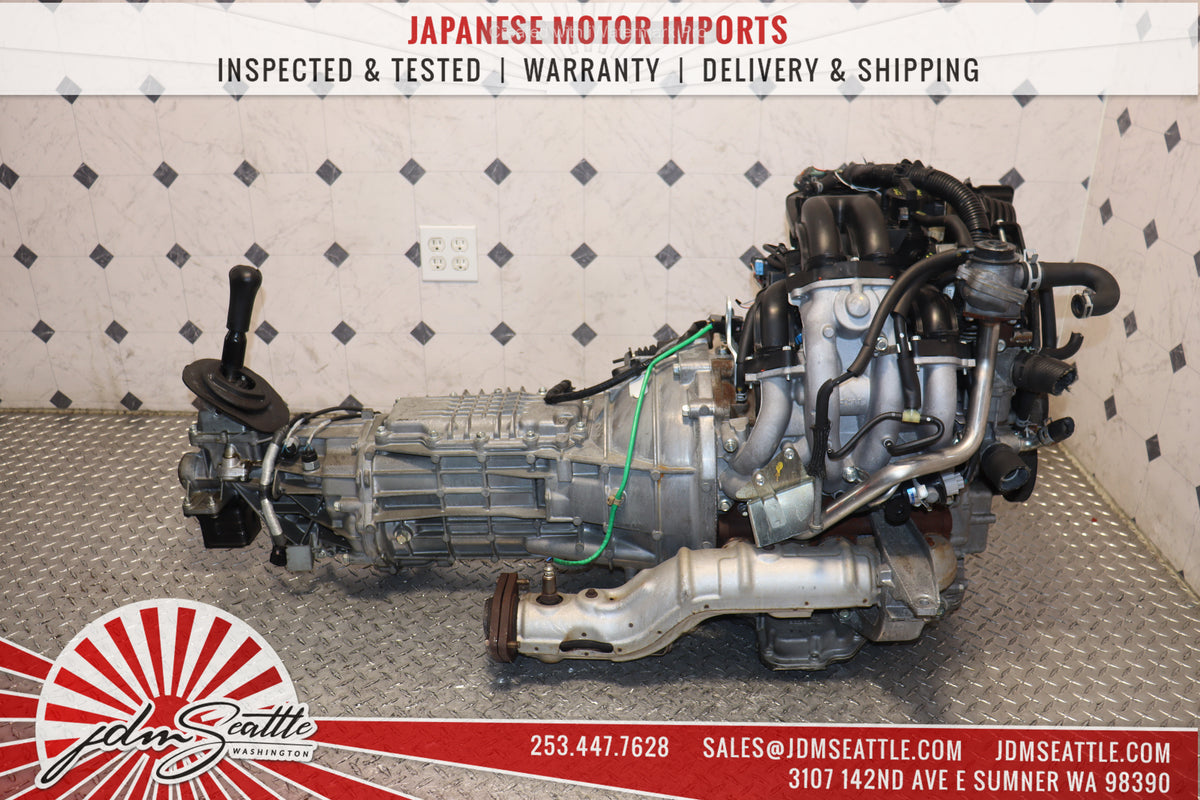

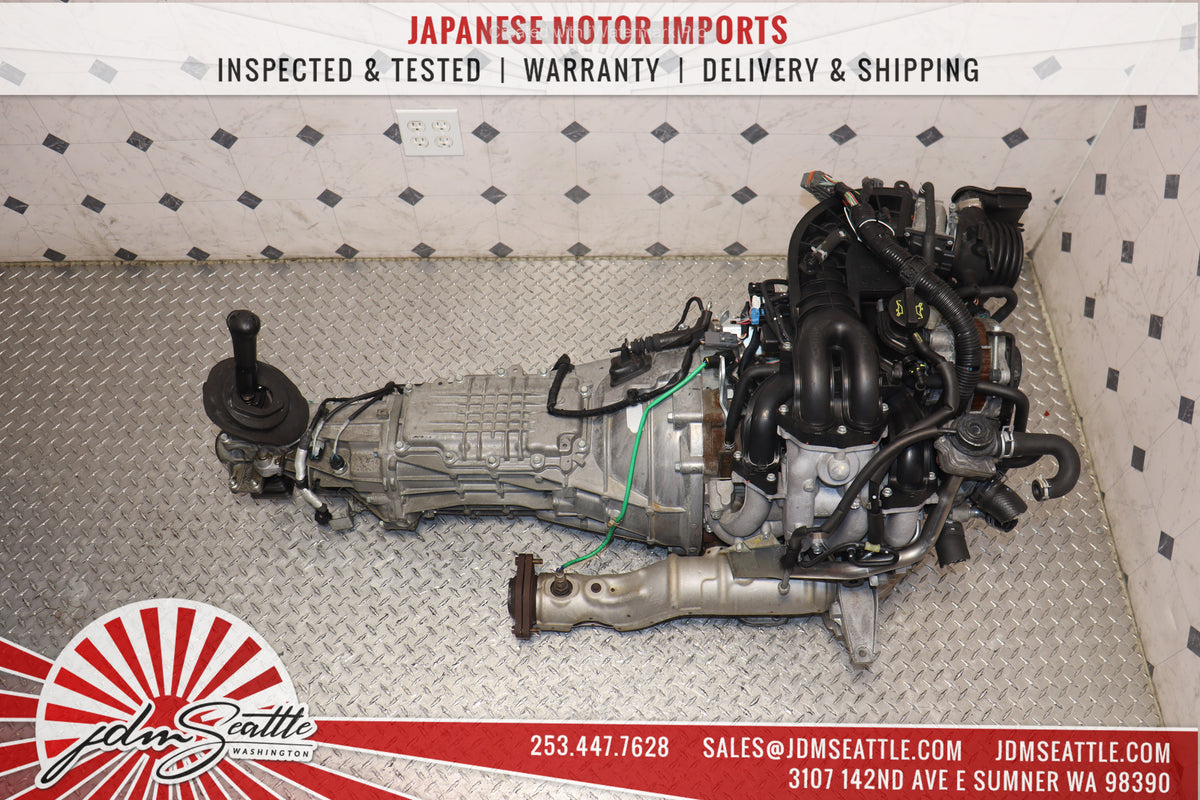

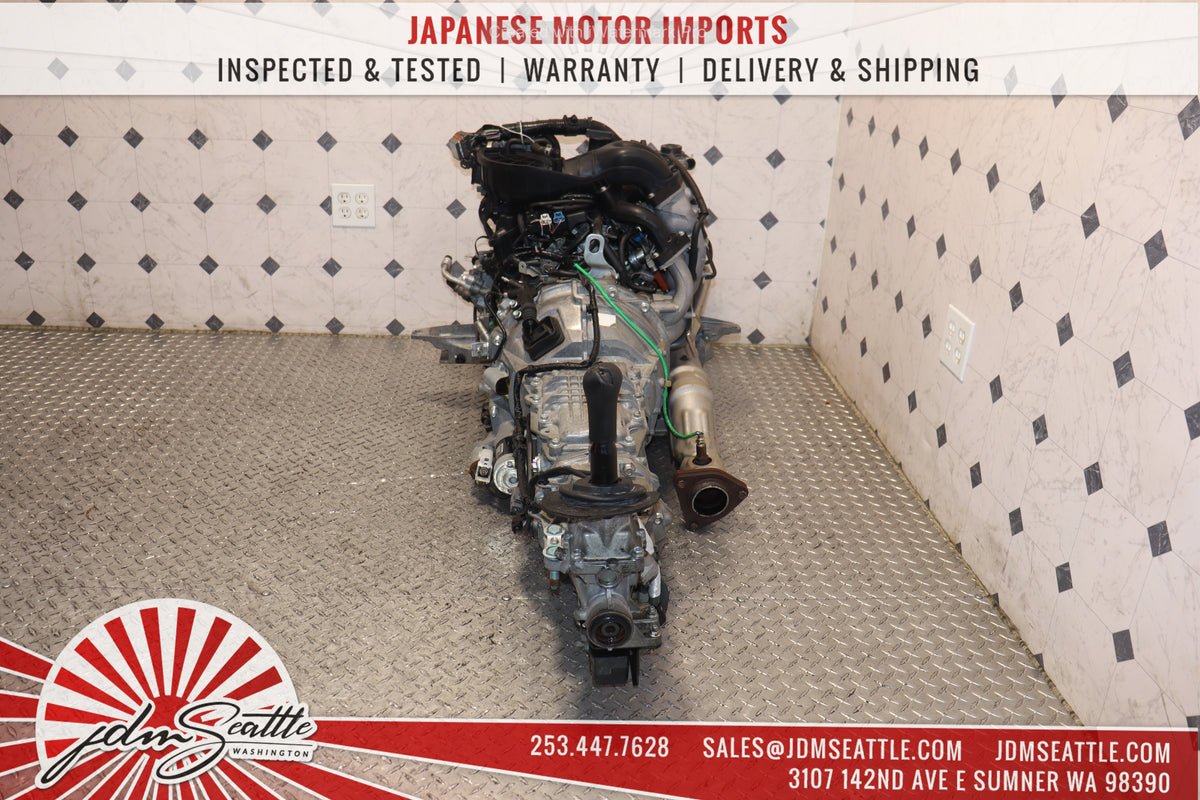

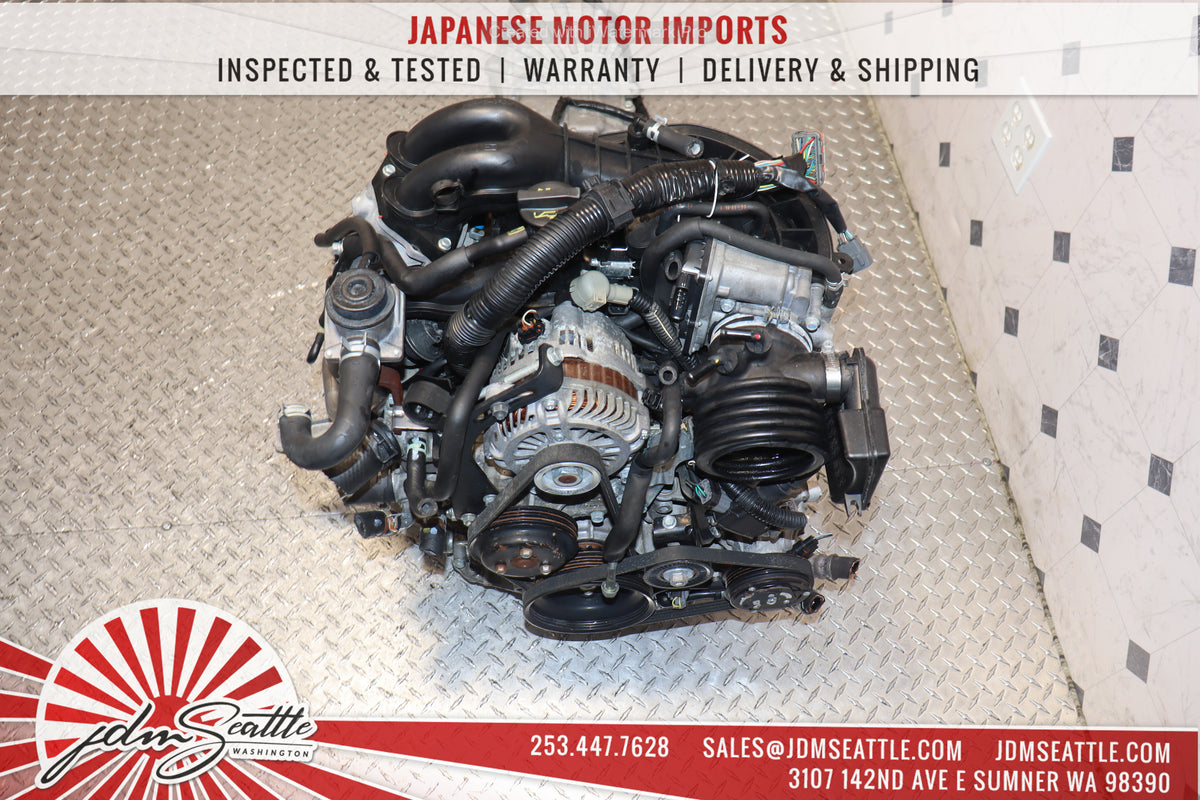

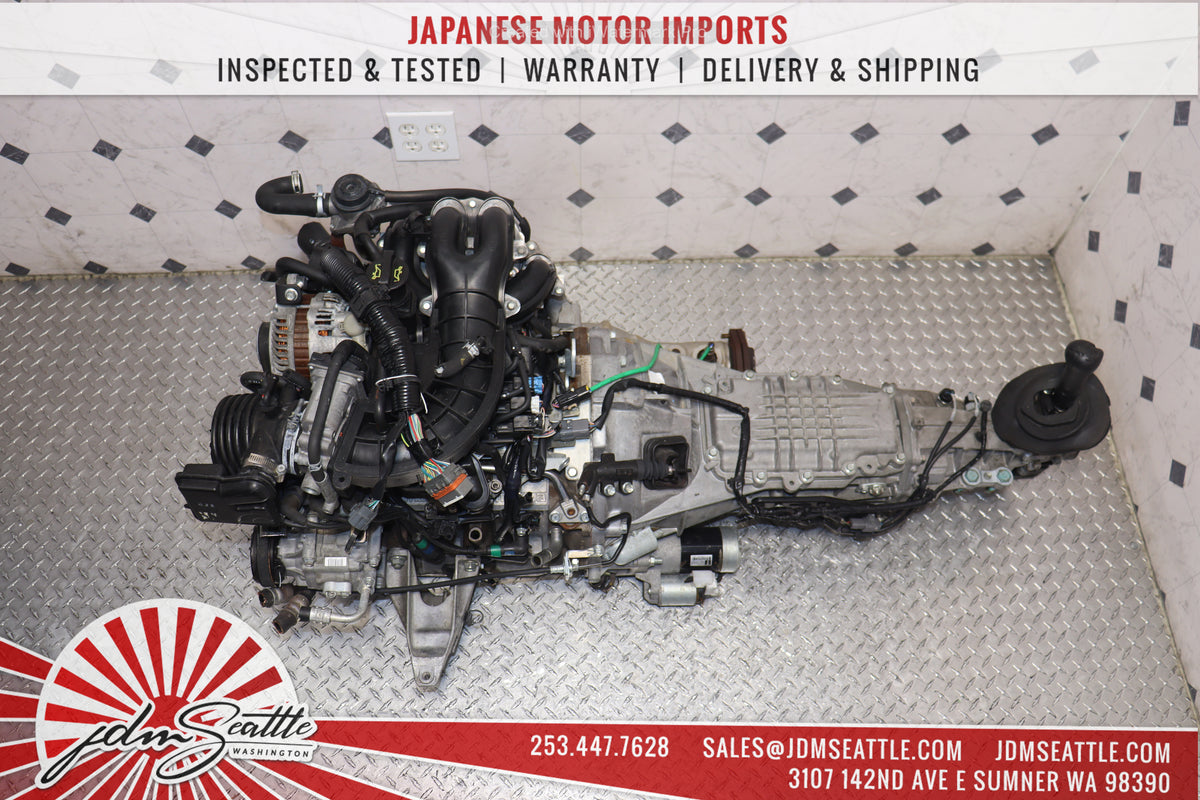

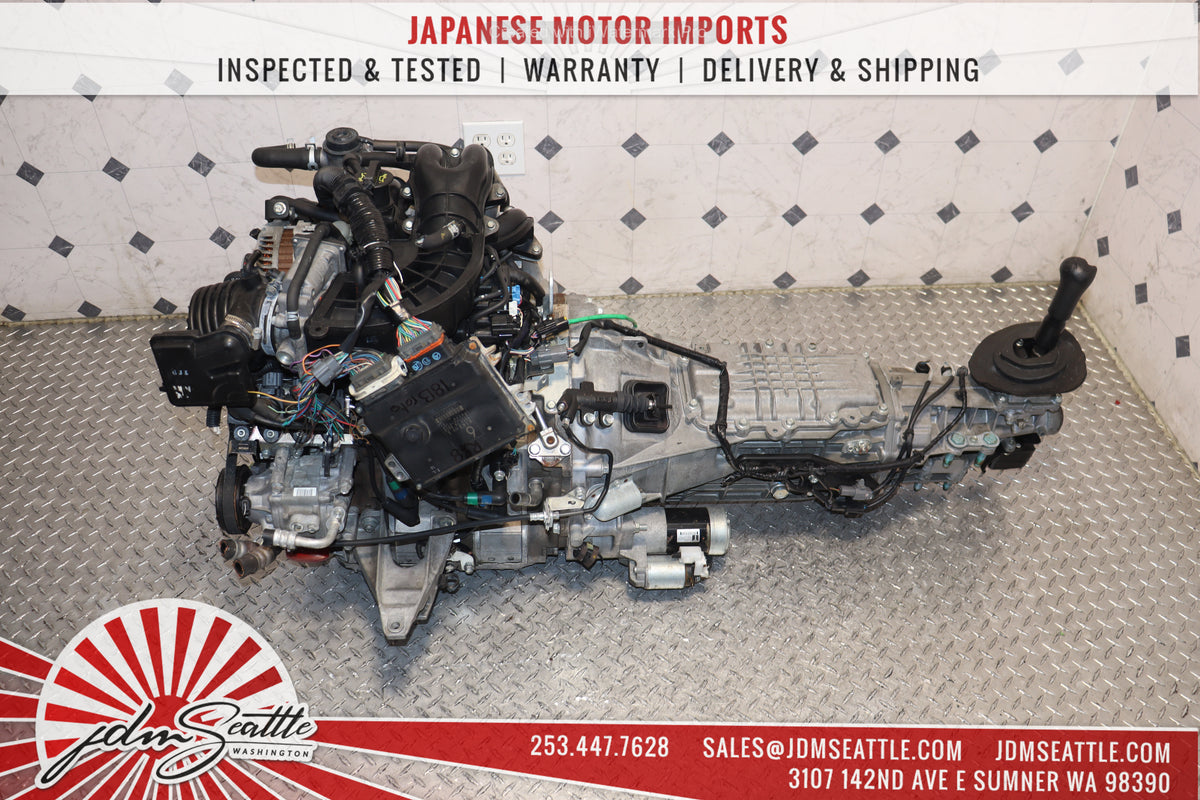

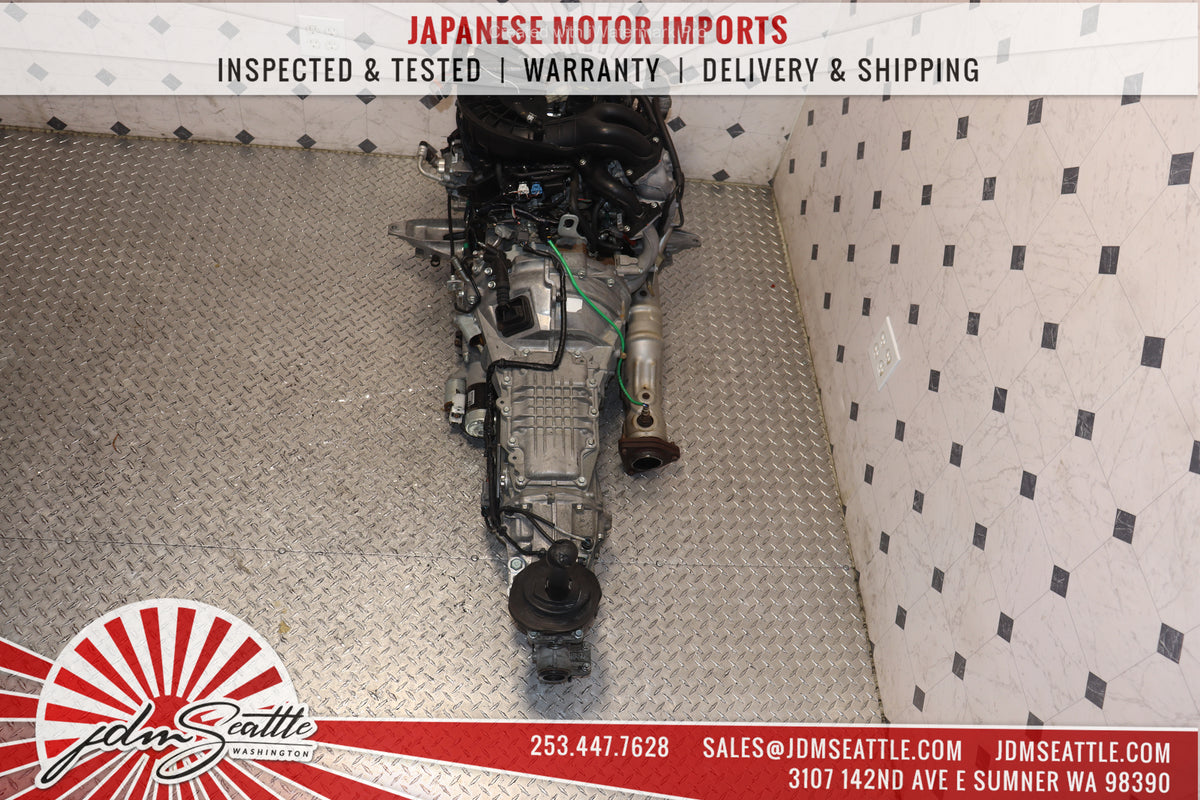

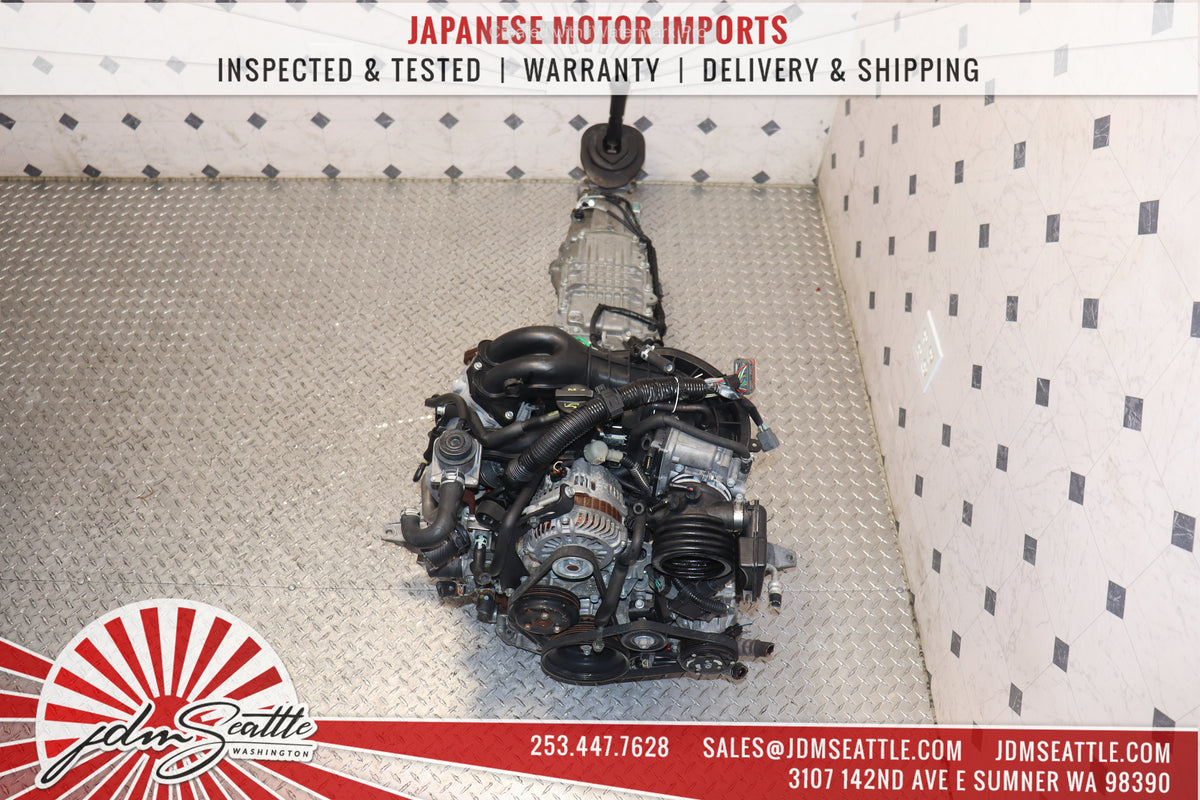

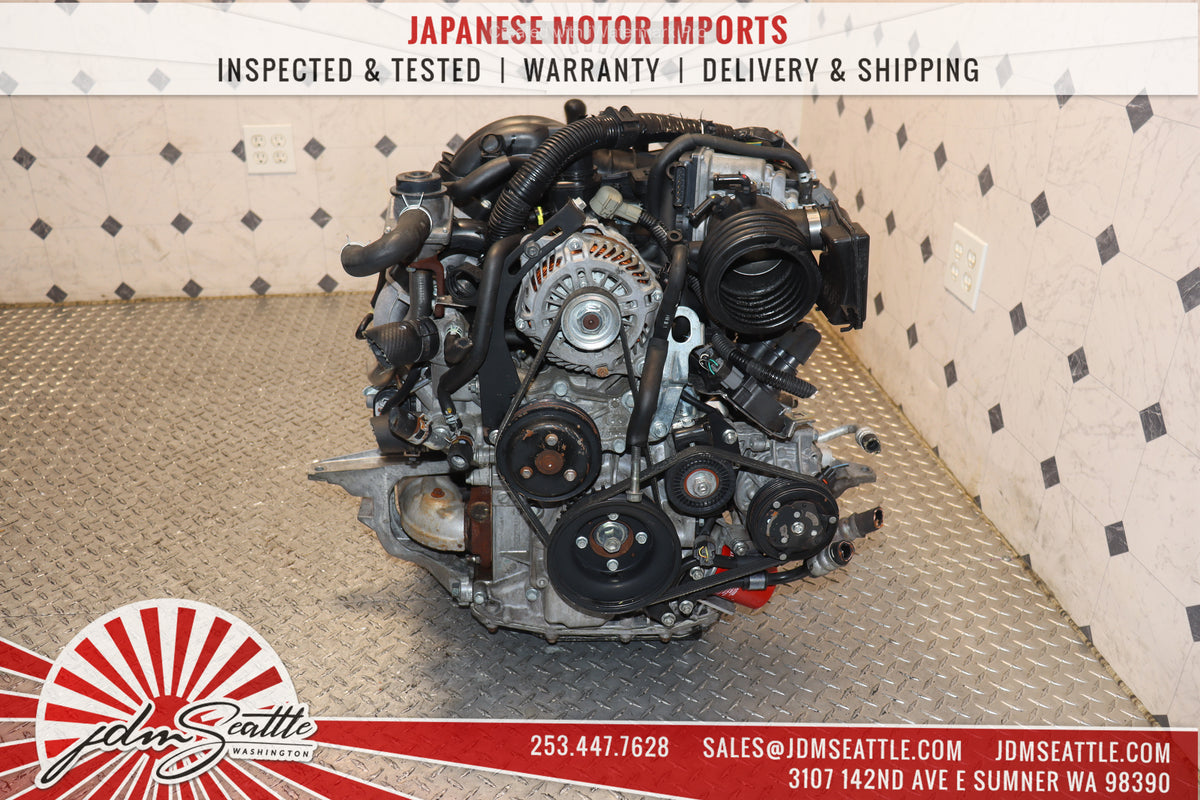

2009-2011 Mazda RX8 13B Renesis JDM Engine | 1.3L 6 Port Rotary Wankel Series 2 Motor
In Stock
1 Left
Sale price
$2,499.99
Regular price
$2,899
Save $399.01 (13%)
Make:
MAZDA 13B
Product Fitment:
09-11 MAZDA RX8
Mileage:
42K
Engine Design:
Wankel
Engine Type:
Gas
Shop Now, Pay Later with Shop Pay
Shop now and pay later with Shop Pay. Split your purchase into easy monthly payments—no fees, no surprises.
Free Local Delivery
Enjoy fast and free delivery within our local area, ensuring your parts arrive quickly, safely, and hassle-free.
90 Days Warranty
90-day warranty for non-performance engines, 30 days for performance. Covers internal parts, excludes labor. Read more
Pickup at JDM SEATTLE
Usually ready in 1 hour View store information
Product Information
2009-2011 Mazda RX8 13B Renesis JDM Engine | 1.3L 6 Port Rotary Wankel Series 2 Motor
| Feature | Details |
| Engine Code | 13B-MSP Renesis (Series 2) |
| Configuration | 2-Rotor Wankel Rotary |
| Port Design | 6-Port (High-Power Output) |
| Transmission | 6-Speed Manual (S2 Specific) |
| Horsepower | 232 hp @ 8,500 rpm (USDM Equivalent) |
| Torque | 159 lb-ft @ 5,500 rpm |
| Redline | 9,000 RPM |
| Lubrication | S2 Dual EMOP System (3 Nozzles per Rotor) |
Vehicle Fitments
This JDM S2 powertrain is designed for the following North American (USDM) models:
-
2009-2011 Mazda RX-8 (Sport, Grand Touring, R3 - Manual Transmission)
Installation & Technical Notes
The Series 2 rotary is a precision machine. To ensure a successful installation and maintain your warranty, please follow these technical guidelines:
-

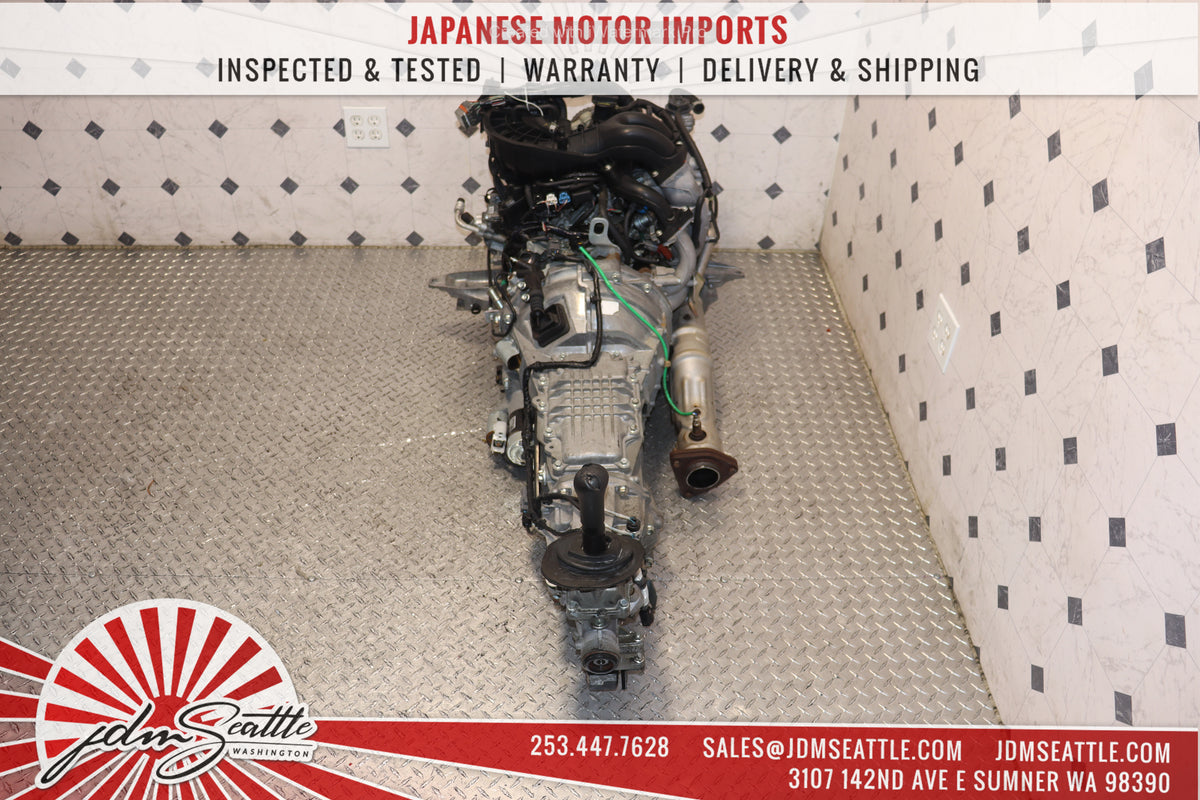

Complete Drivetrain Swap: This package includes the engine long block, intake manifold, 6-speed manual transmission, and clutch/flywheel assembly. You must utilize the Series 2 specific ECU and wiring harness to control the electromagnetic oil metering pumps.
-
Oil System Priming: Before the first startup, the engine must be cranked with the eccentric shaft position sensor disconnected to build oil pressure and lubricate the stationary gears and apex seals.
-
Ignition Health: Rotary engines are extremely sensitive to ignition health. We strictly recommend installing brand-new ignition coils, wires, and spark plugs immediately.
-
Essential Maintenance: We strongly recommend replacing the following parts during the swap:
-
Spark Plugs: NGK RE7C-L (Leading) and RE9B-T (Trailing).
-
Engine Oil: High-quality 10W-30 or 20W-50 Conventional/Idemitsu Rotary Premix.
-
Coolant: Genuine Mazda FL22 Green Coolant.
-
Transmission Fluid: 75W-90 Synthetic Gear Oil (GL-4).
-
-
Premixing: To further extend the life of your JDM apex seals, we recommend "premixing" a high-quality 2-stroke rotary oil into your fuel tank at every fill-up.
