2002 2003 2004 2005 2006 2007 Subaru Impreza WRX Blitz Damper ZZ-R Coilovers Suspension Kit JDM

Transform your vehicle's handling performance and ride height dynamics with this premium JDM 2002-2007 Subaru Impreza WRX BLITZ DAMPER ZZ-R Coilover Kit. Imported directly from Japan, these authentic, high-end performance coilovers are engineered to deliver a perfect balance of aggressive track handling and smooth street compliance. Featuring a 32-way adjustable damping system and a full-length adjustable mono-tube structure, BLITZ ZZ-R coilovers allow you to lower your center of gravity without compromising suspension stroke. Hand-selected and meticulously inspected, this genuine JDM suspension kit replaces worn factory struts to eliminate body roll, increase cornering traction, and give your GD-chassis a clean, aggressive stance.

Vehicle Specifications

• Year Range: 2002, 2003, 2004, 2005, 2006, 2007

• Make & Model: Subaru Impreza WRX (Second Generation / GD Sedan & GG Wagon Chassis)

• Product Series: BLITZ DAMPER ZZ-R Performance Line

• Structure Type: Mono-Tube (Single Cylinder) Internal Geometry

• Damping Adjustment: 32-Way Click Adjustment (Simultaneous Compression and Rebound)

• Shell Case Type: Full-Length Length Adjustable (Separate Ride Height and Spring Preload Adjustments)

• Top Mounts: Heavy-duty aluminum upper mounts (Front pillow-ball camber plates included)

• Origin: Japan (Genuine Japanese Domestic Market Performance Import)

• Condition: Premium Used Import (Inspected for leaks, tested for cylinder rebound pressure, straight shafts, smooth threads)

Vehicle Fitments

• Direct US-Spec Bolt-On Fitment: 2002-2007 Subaru Impreza WRX models (Bugeye, Blobeye, and Hawkeye sedan and wagon variants running the 5x100mm hub spindle configuration).

• Interchange Note: Fits 2004 Subaru Impreza WRX STI models (5x100mm layout).

• Does NOT Fit: 2005-2007 Subaru WRX STI models, which utilize larger, wider rear knuckle spindle mounts and a 5x114.3mm layout.

Included Parts

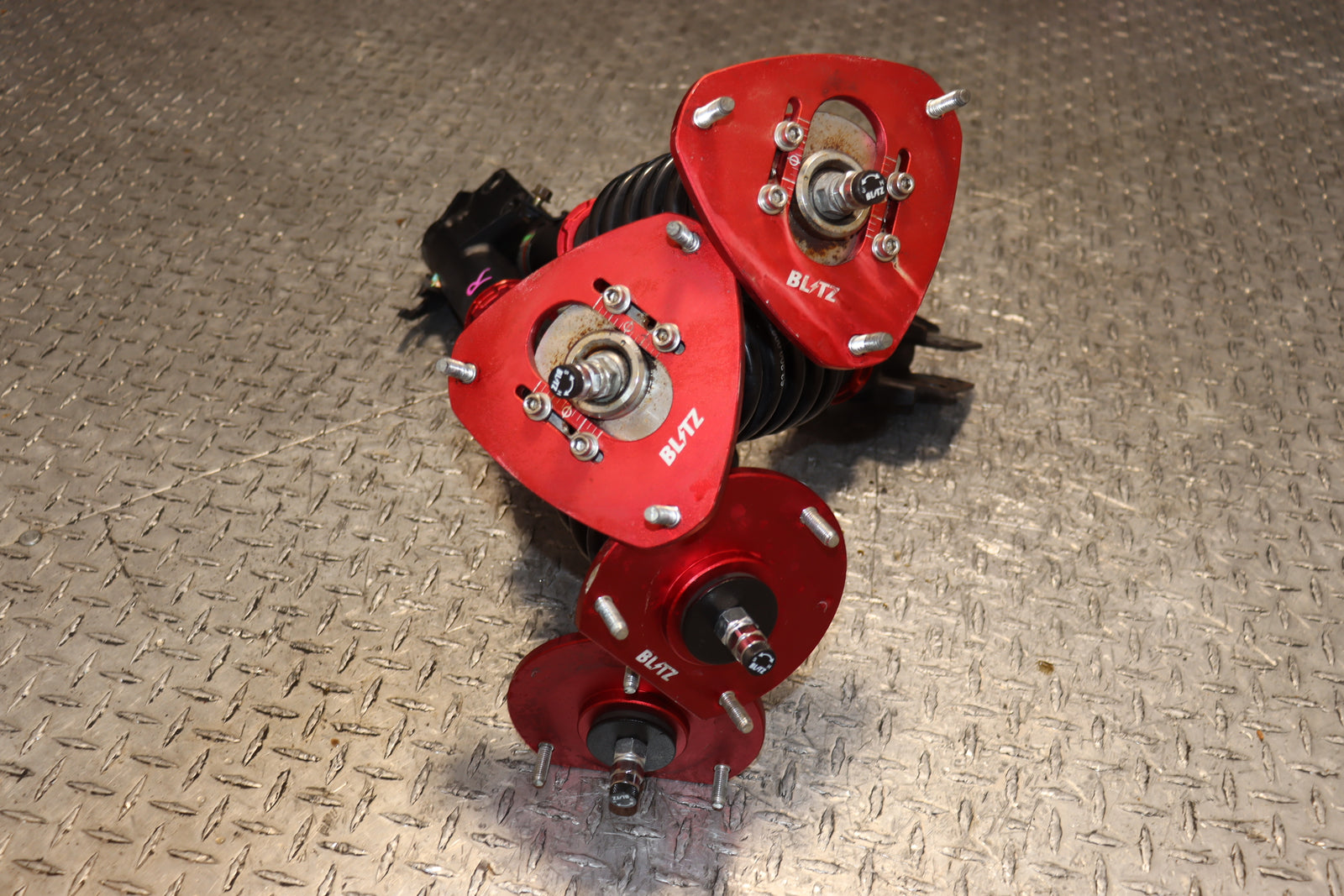

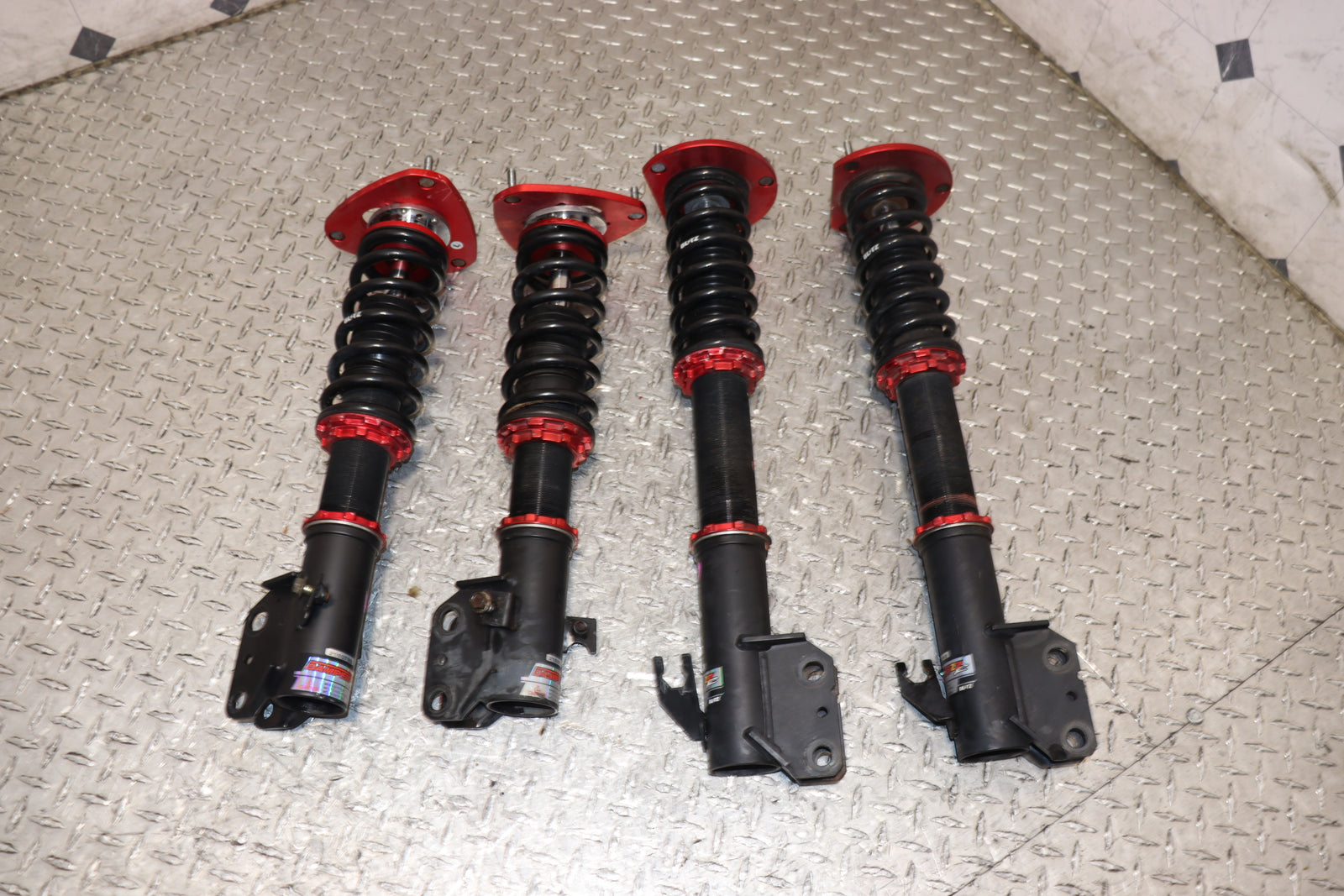

• Front Coilovers: Two (2) Complete front assemblies with BLITZ springs, dampers, and adjustable pillow-ball camber top plates

• Rear Coilovers: Two (2) Complete rear assemblies with BLITZ springs, dampers, and rubber-isolated top mounts

• Adjustment Hardware: BLITZ adjustment spanner wrenches (when available) and integrated clicker knobs for top dampening adjustment

Installation & Track Alignment Notes

• Direct Chassis Bolt-On: This kit is designed as a direct structural replacement for factory strut/spring combinations. It bolts directly to the original vehicle shock towers and hub knuckles without modification.

• Preload & Height Adjustments: Always adjust ride height using the lower shell casing bracket rather than spinning the spring seat perches. This ensures full suspension travel and protects the inner piston valves from bottoming out.

• Alignment Requirement: After lowering your chassis, a professional four-wheel vehicle alignment is mandatory. Use the integrated front upper camber plates to adjust front track tracking and maximize tire contact patches.

• Thread Maintenance: To prolong the life of the aluminum locking rings and prevent binding from road salt or debris, it is highly recommended to clean and apply an anti-seize compound or protective coating to the shock body threads prior to seasonal installation.
