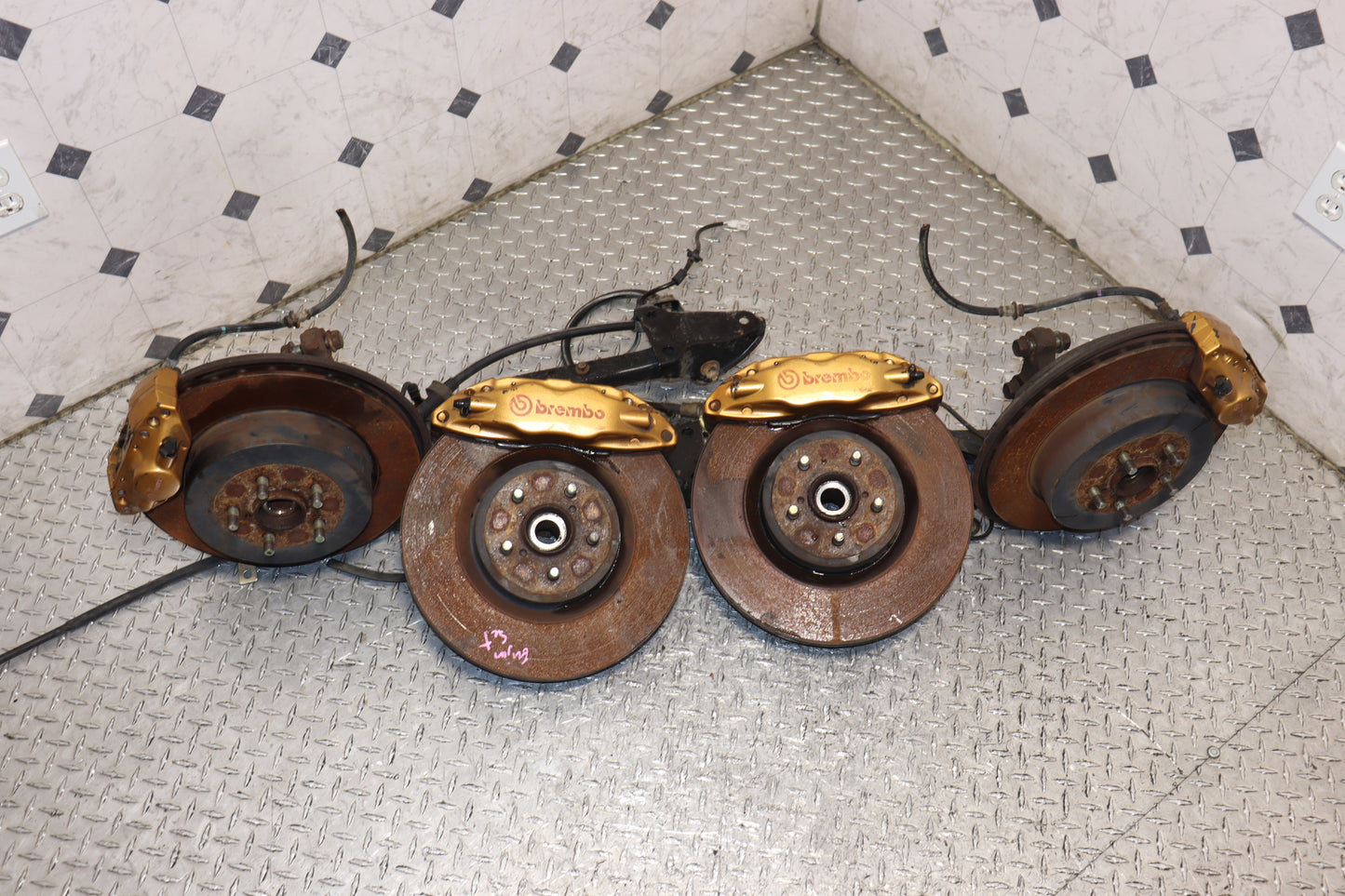

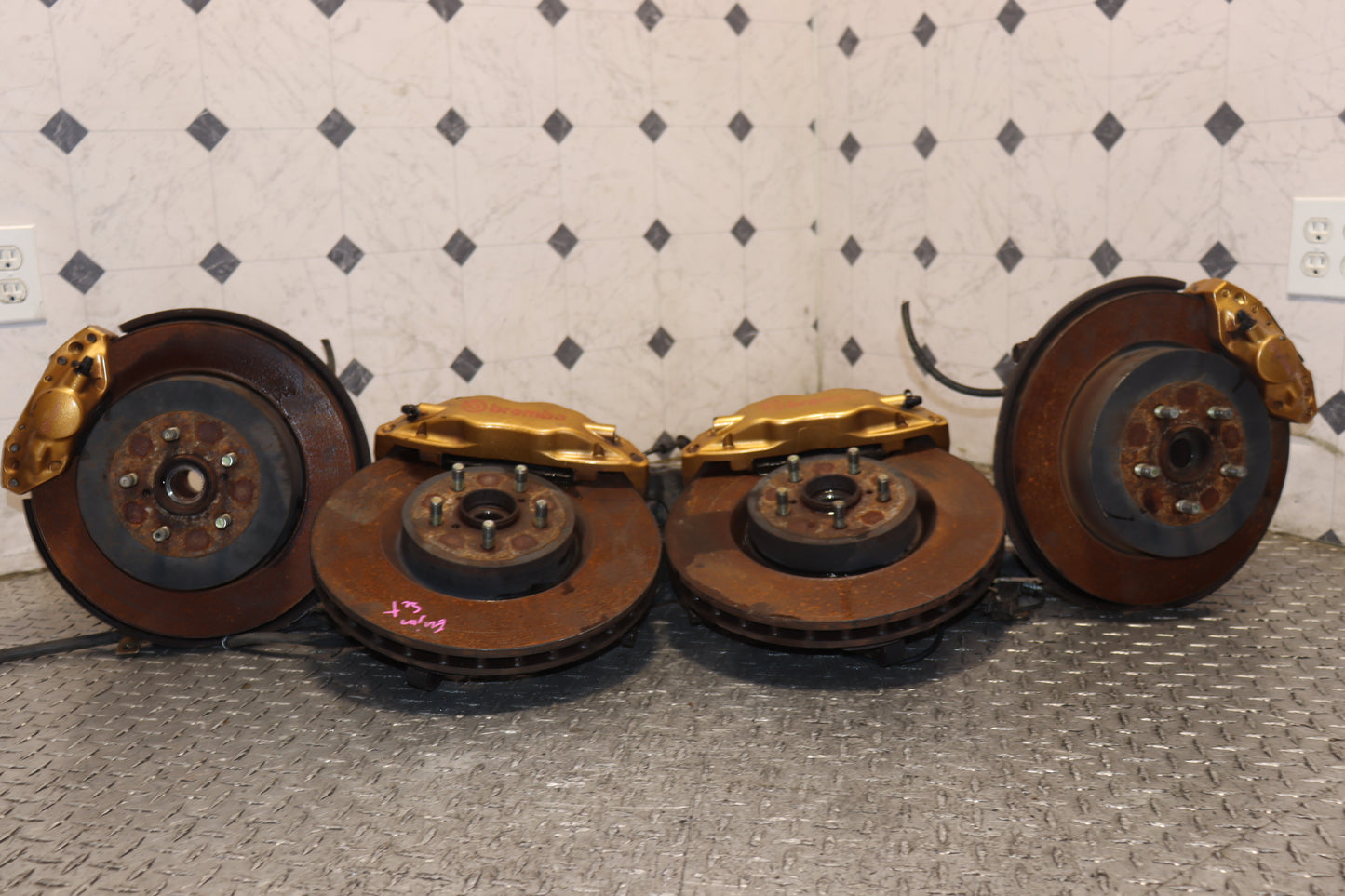

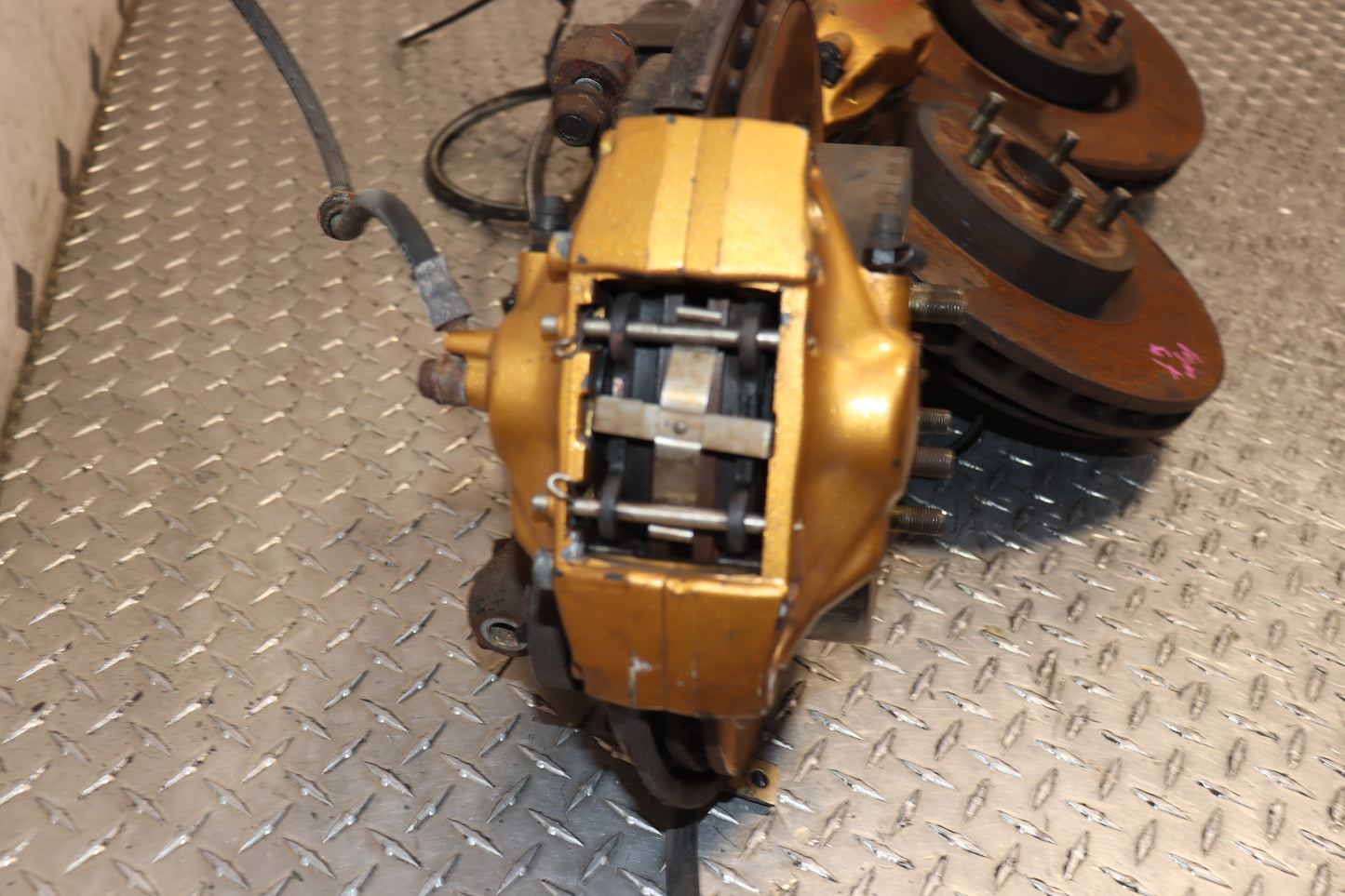

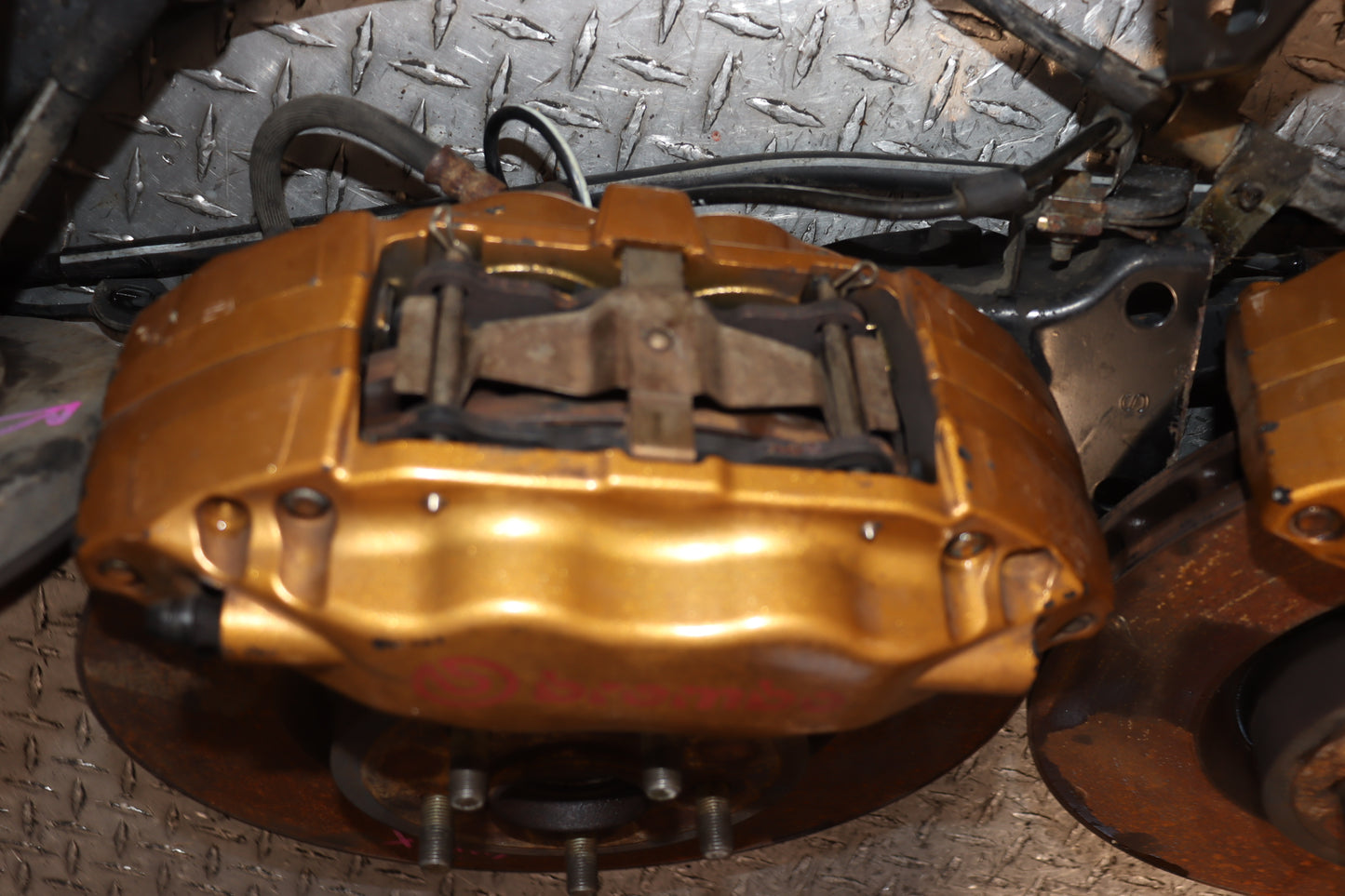

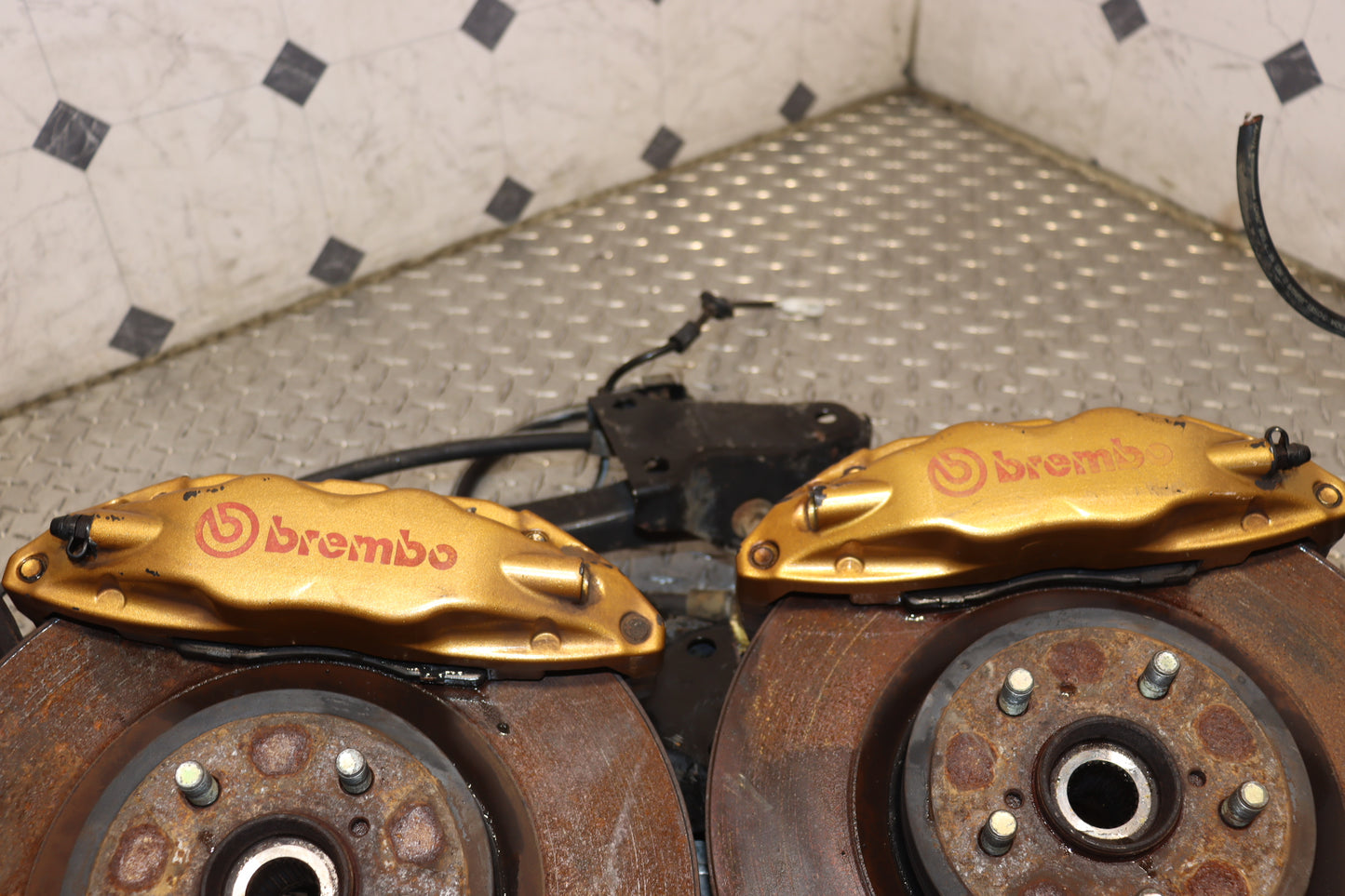

2002-2005 Subaru Impreza WRX STI JDM Gold Brembo Brake Calipers Rotors Set Front Rear OEM

Maximize your stopping power and eliminate brake fade with this premium Set of JDM 2002-2005 Subaru Impreza WRX STI Gold Brembo Brake Calipers and Rotors. Imported directly from Japan, this genuine OEM high-performance big brake kit is sourced from the iconic GD-chassis Japanese domestic market GDB platforms. Featuring the legendary factory gold powder coat finish with red Brembo branding, this complete package includes heavy-duty 4-piston front calipers and 2-piston rear calipers. Thoroughly inspected and pressure tested, this authentic JDM upgrade delivers track-ready deceleration, crisp pedal feedback, and a massive aesthetic boost to your Subaru restoration or performance project.

Vehicle Specifications

• Year Range: 2002, 2003, 2004, 2005

• Make & Model: Subaru Impreza WRX STI (GDB Generation / Bugeye & Blobeye Chassis)

• Caliper Type: High-Performance Fixed Aluminum Monoblock Calipers

• Front Configuration: Large 4-Piston Heavy-Duty Calipers

• Rear Configuration: 2-Piston Calipers

• Color Finish: Original JDM Factory Metallic Gold with Red Brembo Script

• Hub Bolt Pattern Compatibility: 5 x 100 mm Spindle Layout

• Origin: Japan (Genuine OEM Japanese Domestic Market Import)

• Condition: Premium Used Performance Setup (Inspected for structural integrity, hydraulic seal function tested, and bleeder screws verified free)

Vehicle Fitments

• Direct US-Spec Factory Replacement: 2004 Subaru Impreza WRX STI models (The only domestic STI model running the 5x100 hub configuration).

• Direct Performance Upgrade Bolt-On:

  • 2002-2005 Subaru Impreza WRX (GD Sedan / GG Wagon models)

  • 2006-2007 Subaru Impreza WRX (Hawkeye models - Provides a massive upgrade over factory sliding calipers)

  • 2003-2008 Subaru Forester XT (SG Chassis)

• Fitment Note: Designed for standard 5x100mm knuckes. Does NOT directly fit 2005-2007 USDM STI hubs which utilize the larger 5x114.3mm layout.

Included Parts

• Front Calipers: Two (2) Genuine Gold Brembo 4-Piston Caliper Units (Left and Right)

• Rear Calipers: Two (2) Genuine Gold Brembo 2-Piston Caliper Units (Left and Right)

• Brake Rotors: Set of four (4) matching used 5x100 performance brake rotors (Front and Rear - Included as a bonus for mock-up/machining)

• Hardware: Factory caliper-to-knuckle mounting bolts and internal pad structural retaining pins

Installation & Clearance Notes

• Wheel Clearance Requirements (Critical): Because of the massive physical casing profile of the Brembo calipers, standard base 16" and 17" WRX wheels will not clear the face of the front calipers. Installers must utilize wheels explicitly designed with high-pad spoke clearance (such as factory 17" Version 7 or 2004 STI wheels, or aftermarket performance wheels with an appropriate face profile).

• Rear Caliper Adapter Notice: When retrofitting this kit onto a base WRX or Forester XT chassis, the installer will need aftermarket rear caliper bracket conversion adapters and matching oversized 5x100 rear brake rotors to adjust for the wider caliper mounting tabs.

• Fluid System Care: It is highly recommended to flush out all old hydraulic lines and replace them with DOT 4 high-temperature racing brake fluid to achieve firm pedal feel and maximum thermal efficiency.

• Preventative Maintenance: While the pistons and boots have been inspected, it is a best practice to install brand new performance brake pads and either resurface or replace the rotors prior to final assembly.
