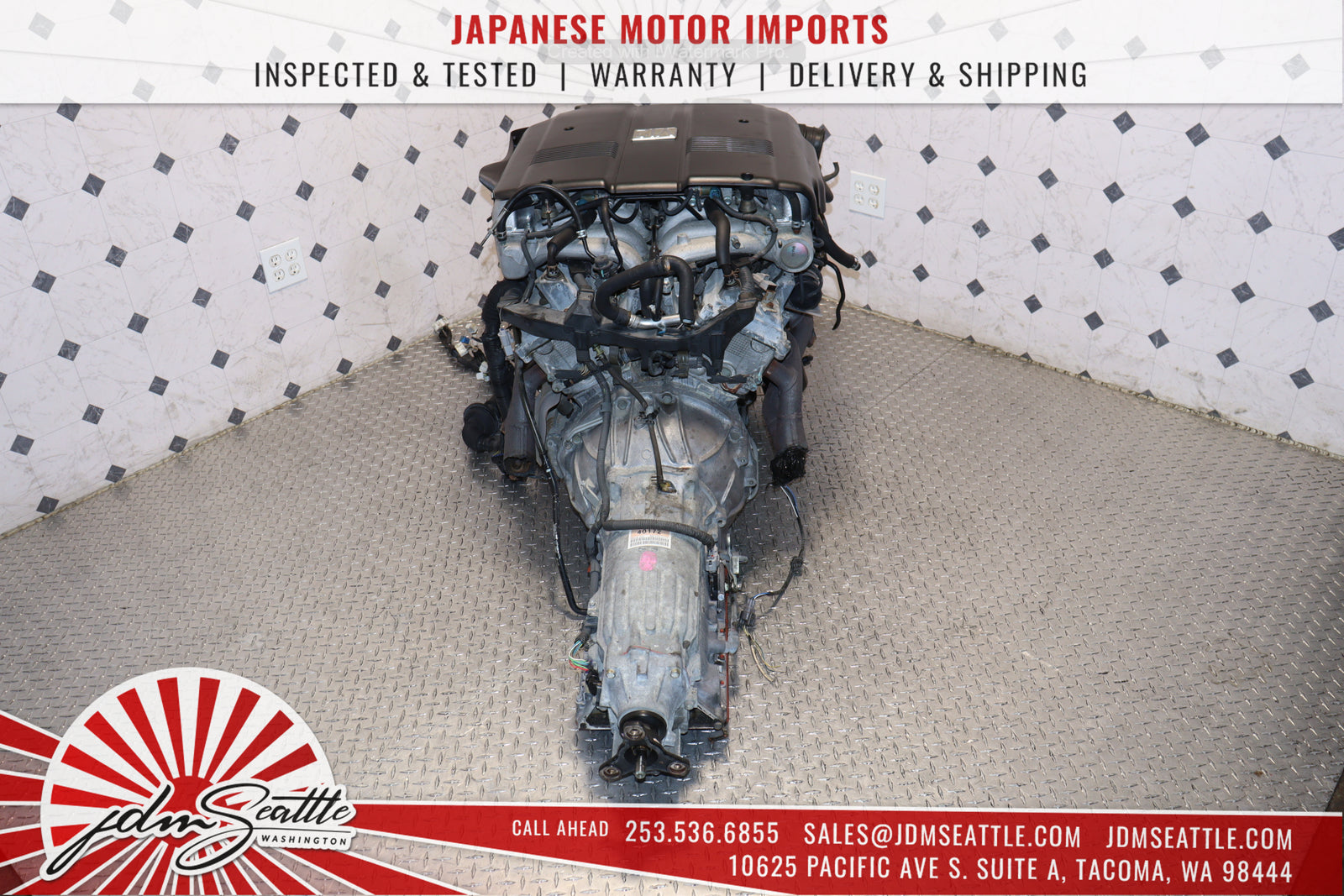

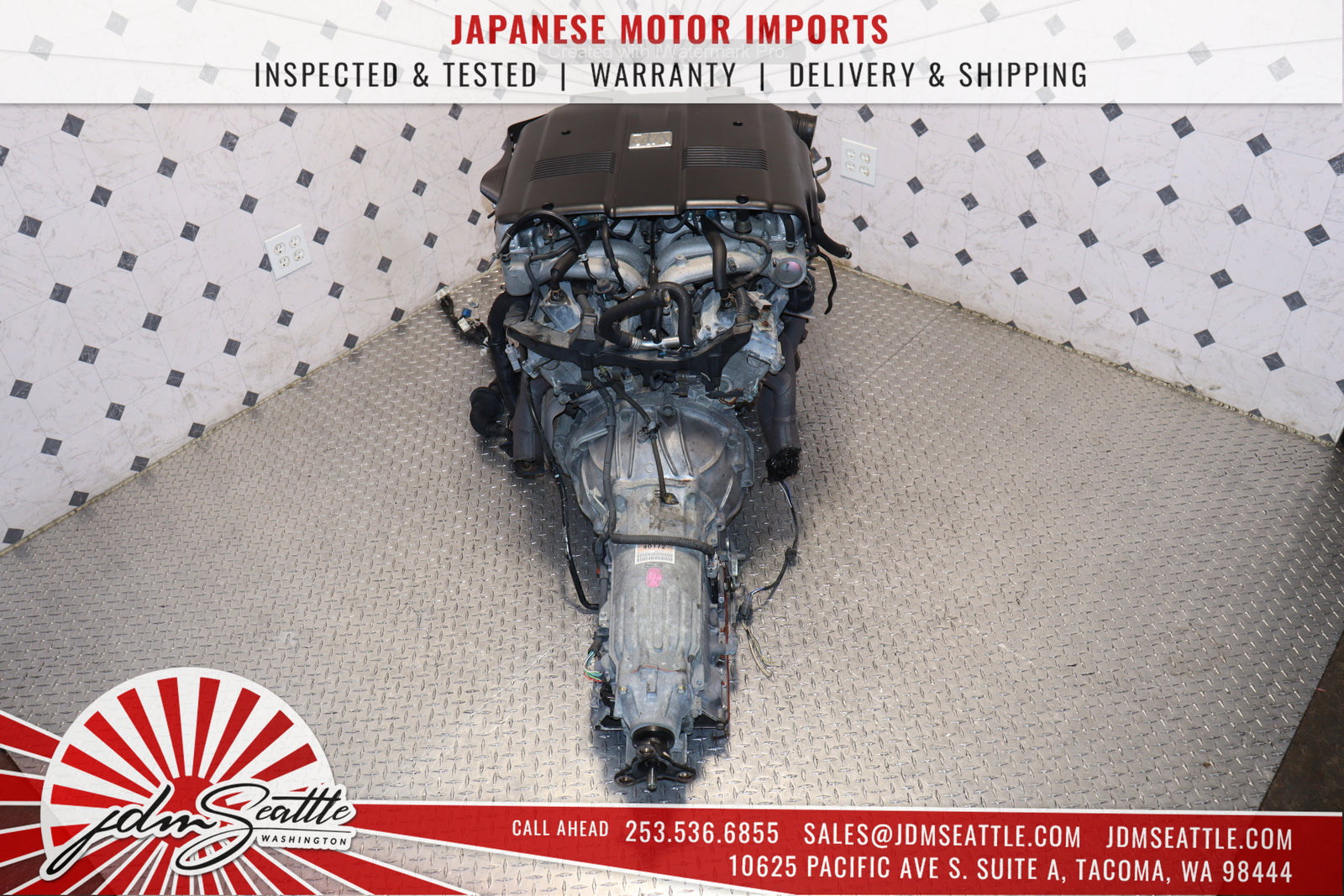

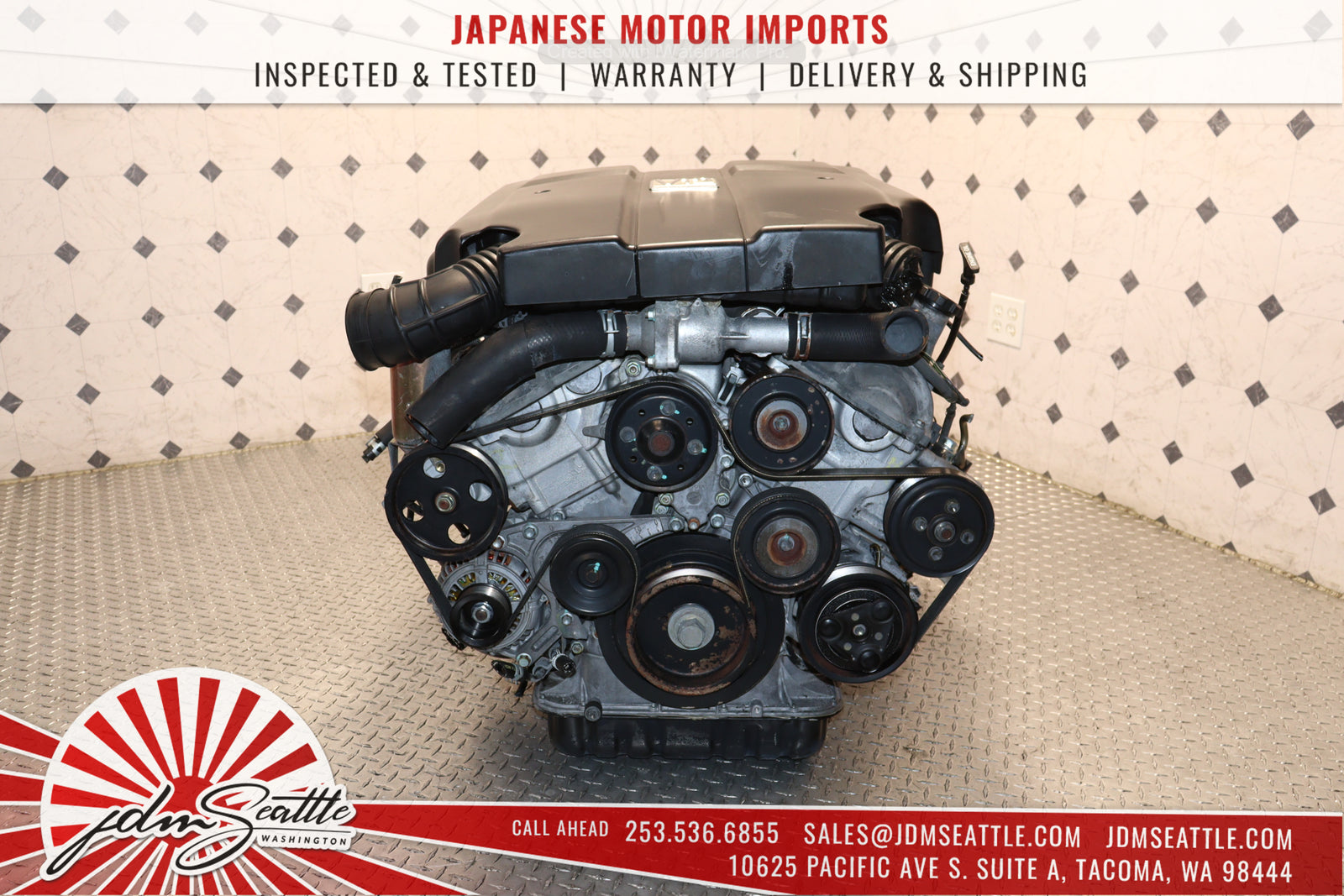

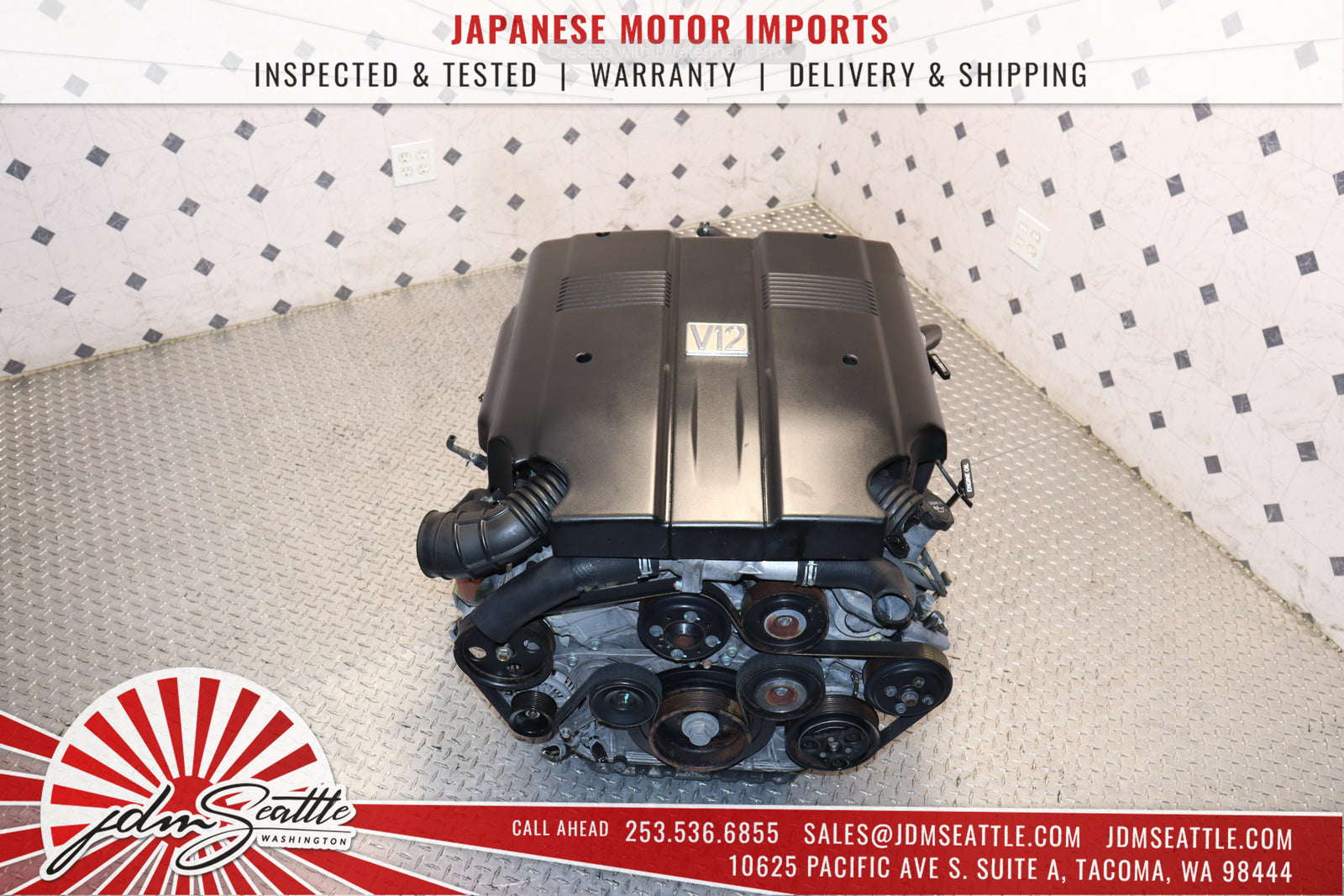

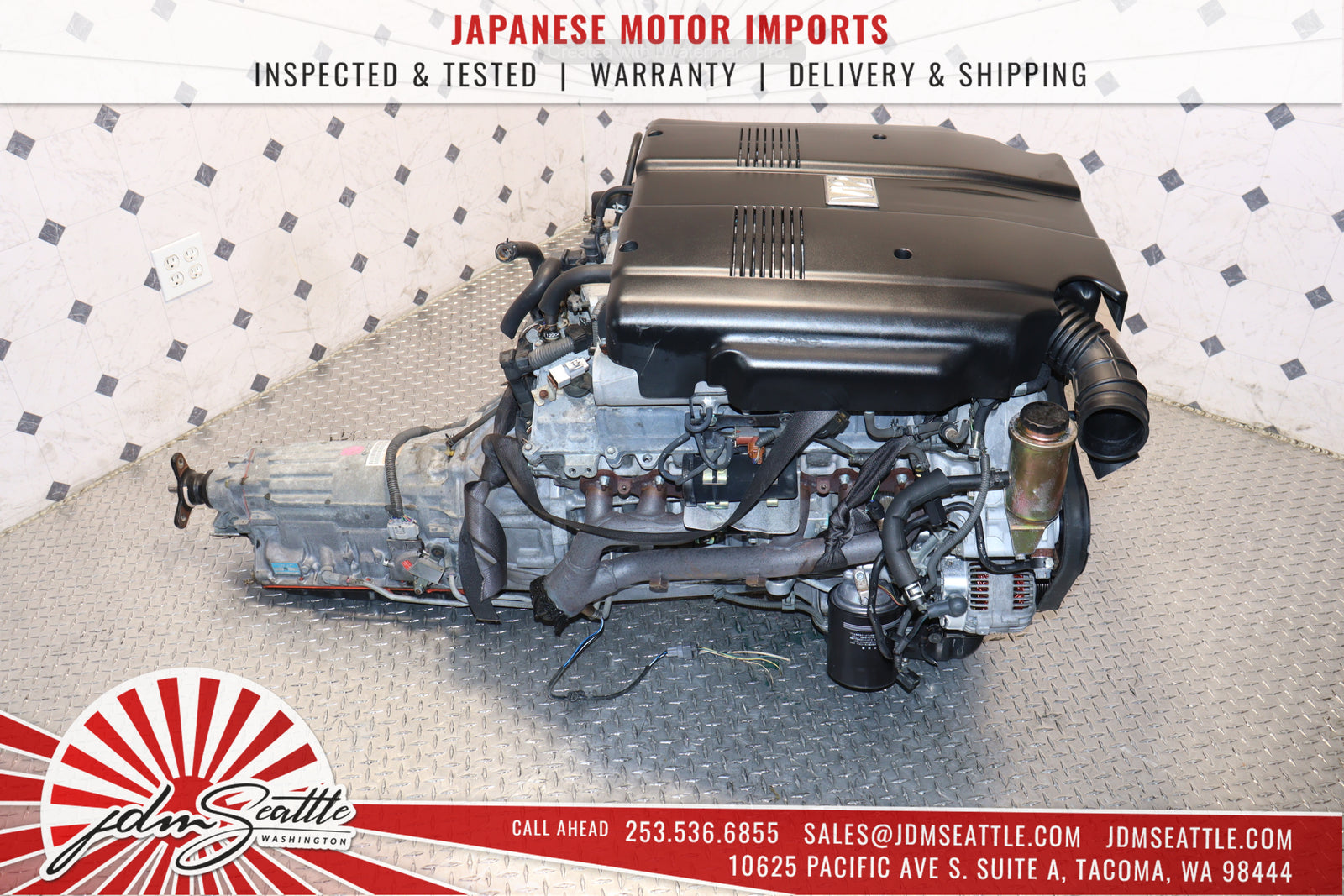

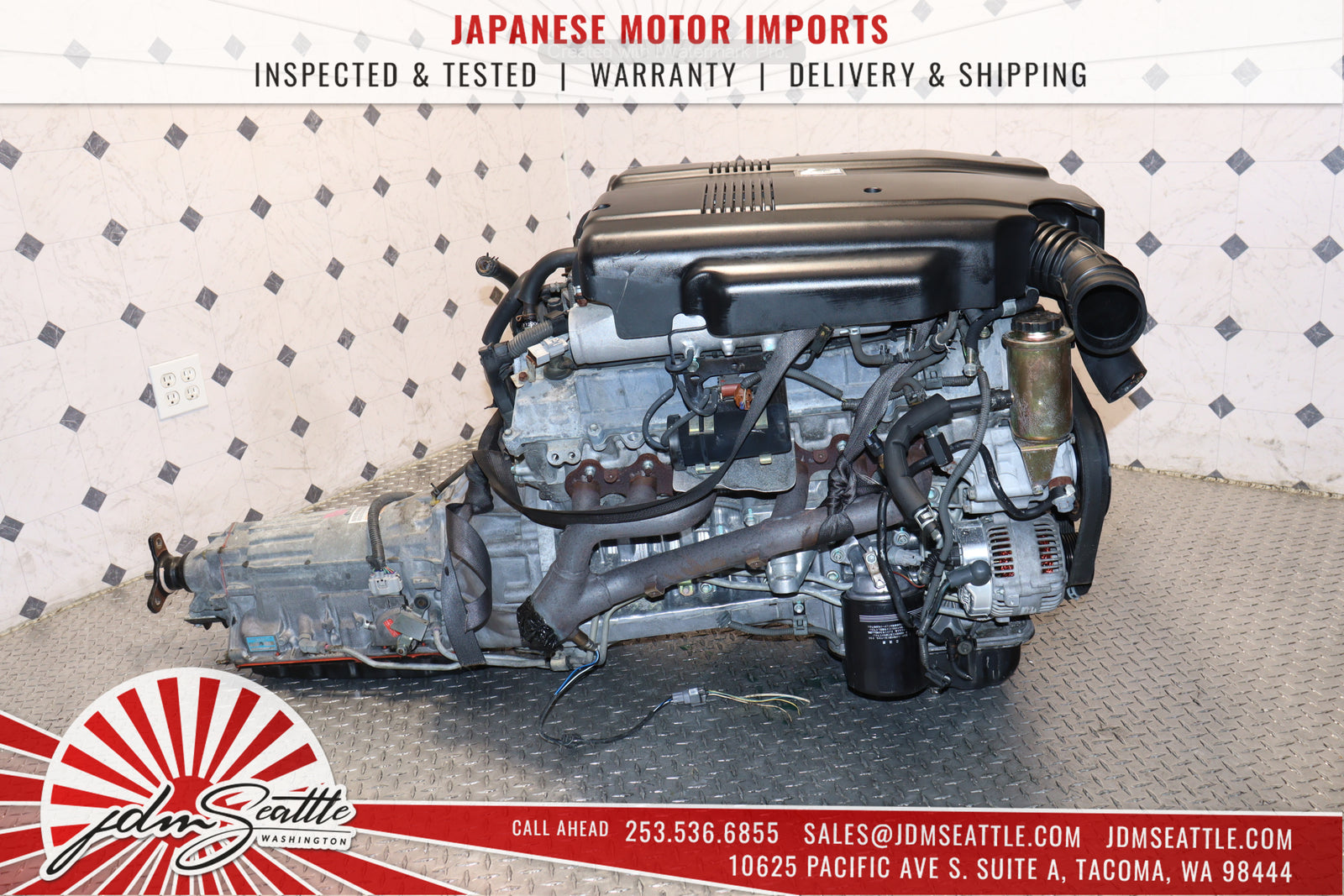

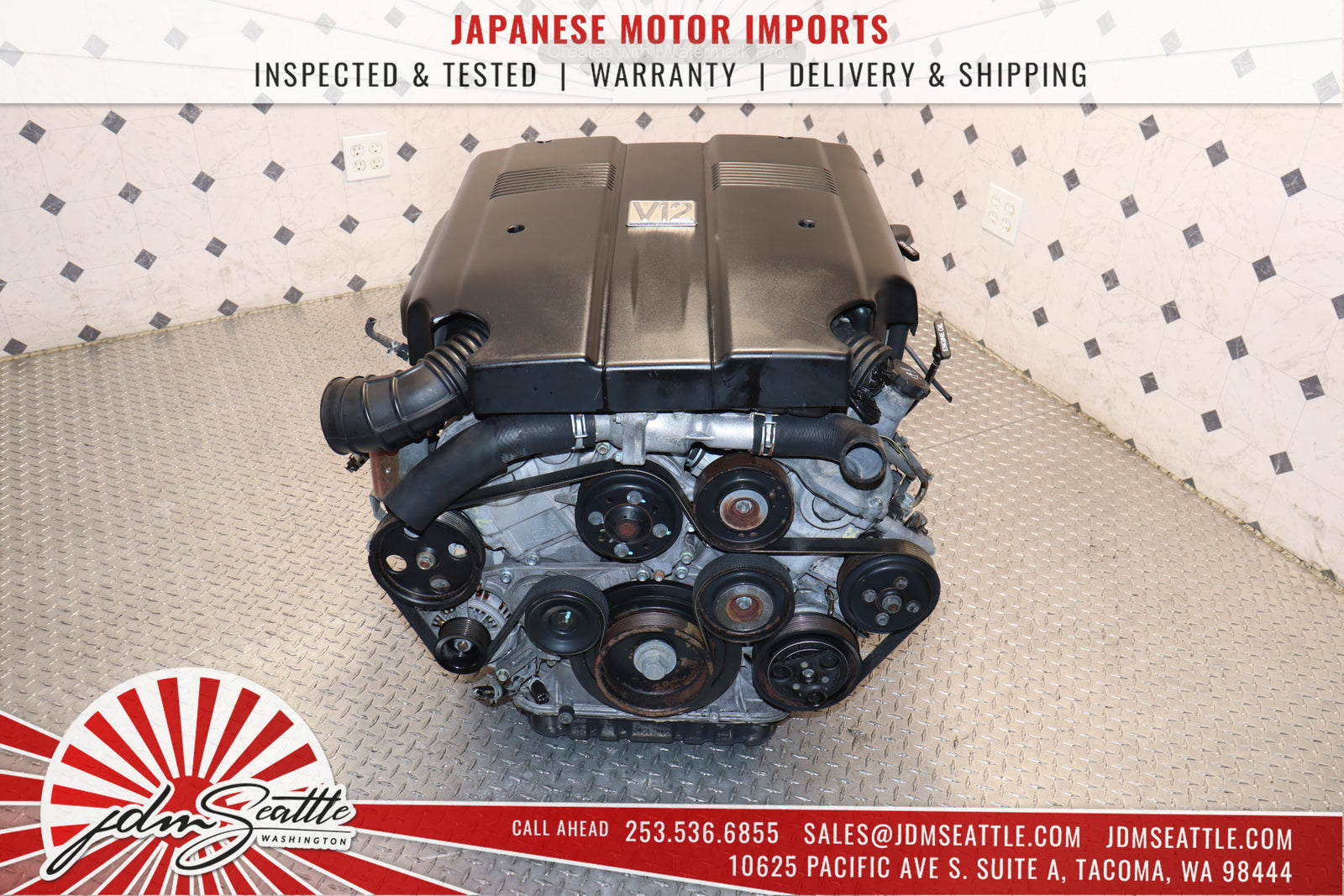

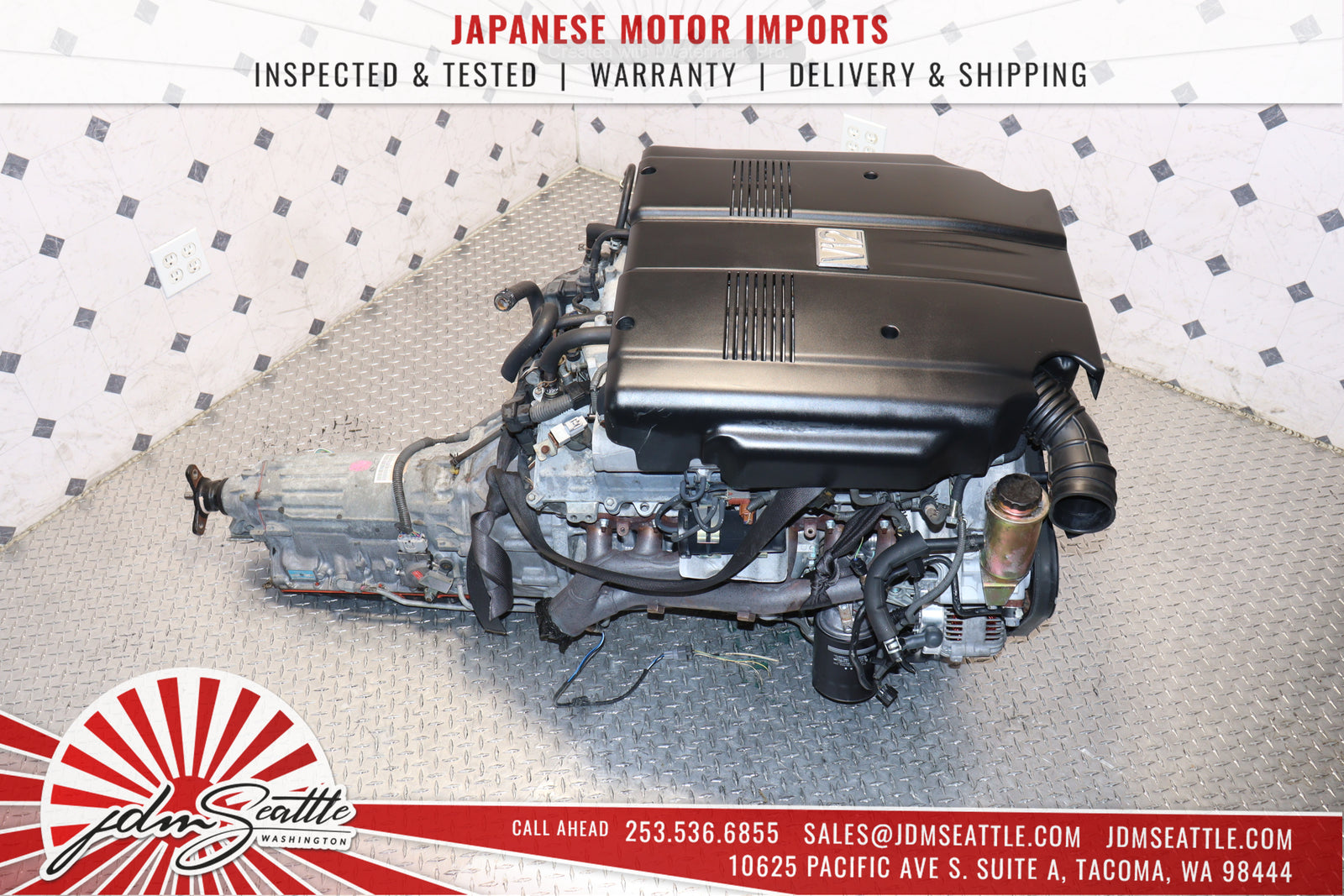

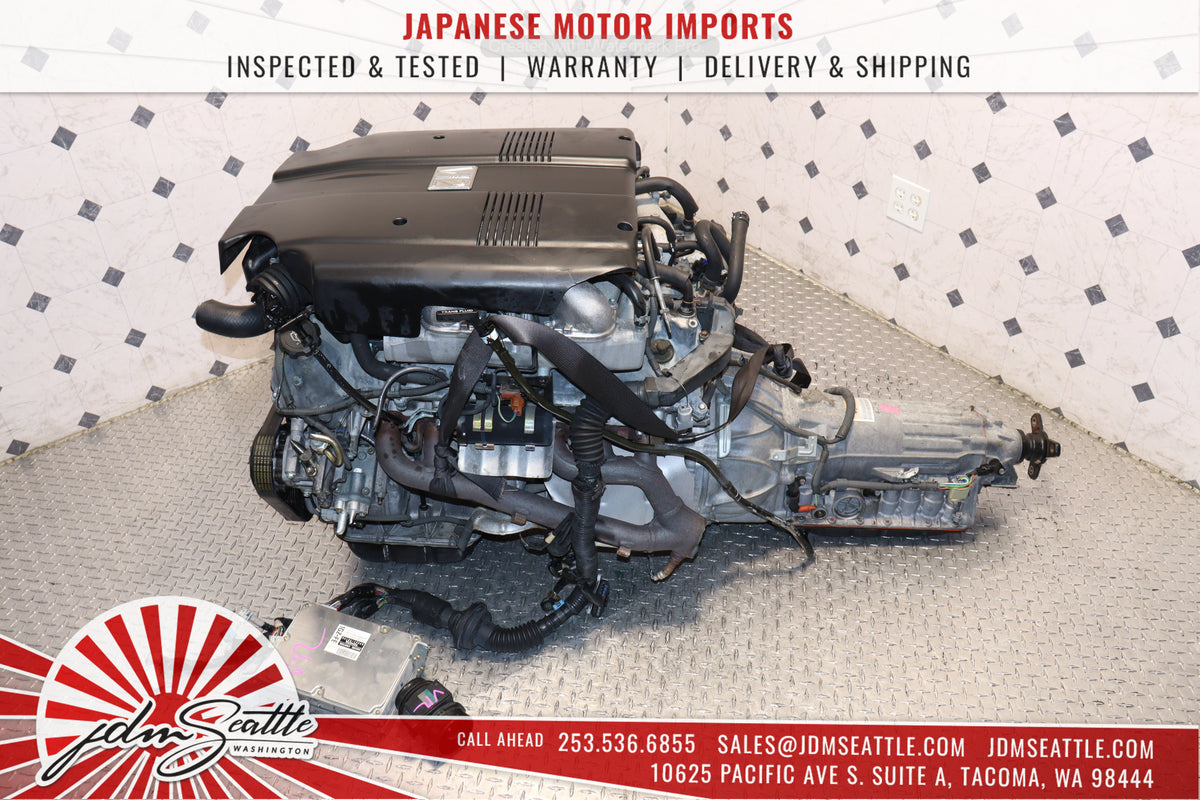

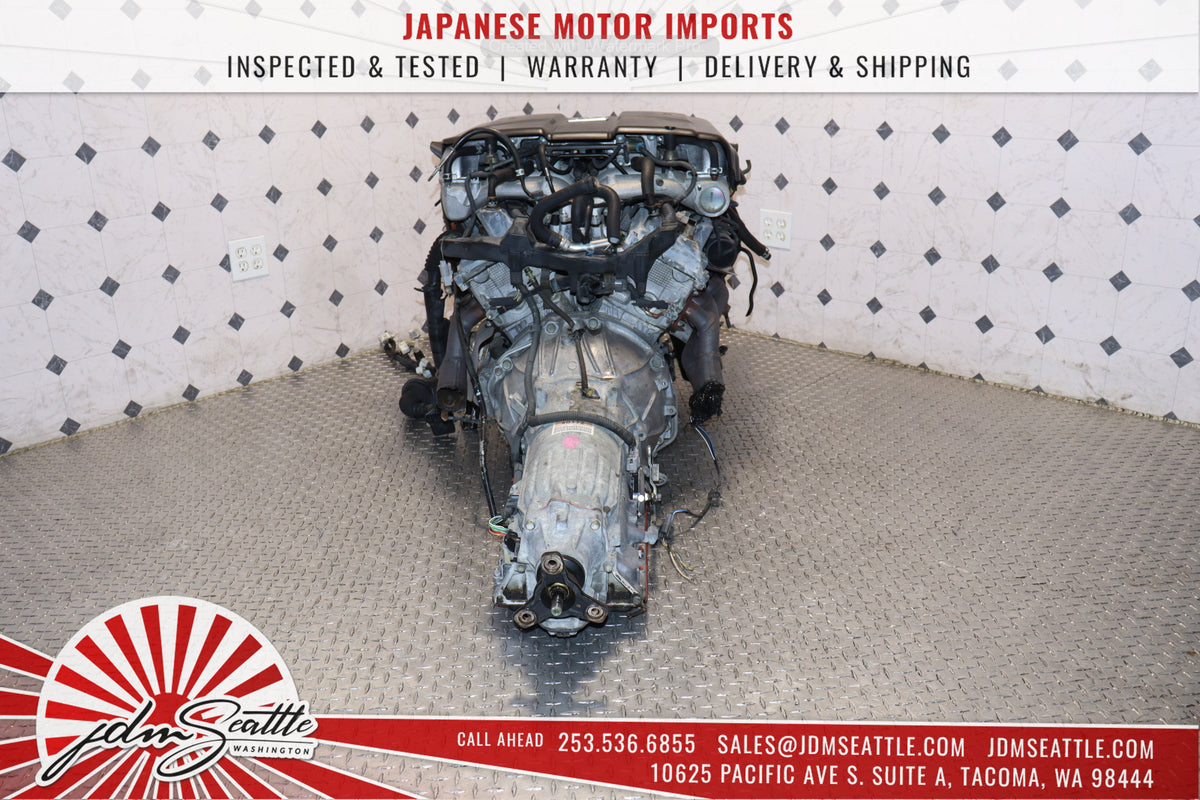

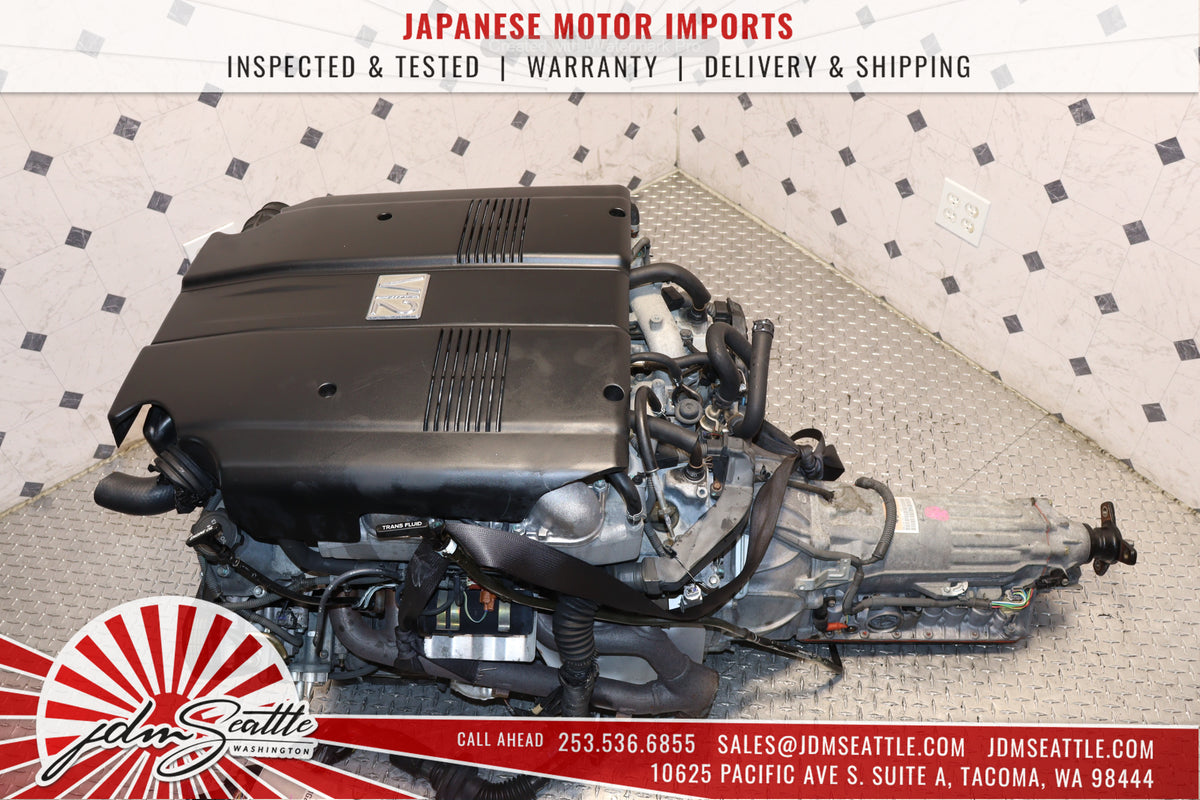

Toyota Century / Supra 1GZ-FE JDM Engine | 5.0L V12 DOHC Dual VVT-i Motor
In Stock
1 Left
Sale price
$4,000
Regular price
$5,699.99
Save $1,699.99 (29%)
Make:
Toyota
Product Fitment:
1GZ-FE - V12 TOYOTA CENTURY SUPRA ENGINE
Mileage:
51K
Engine Design:
V12
,
DOHC
Engine Type:
Gas
Warranty:
90 Days
Shop Now, Pay Later with Shop Pay
Shop now and pay later with Shop Pay. Split your purchase into easy monthly payments—no fees, no surprises.
Free Local Delivery
Enjoy fast and free delivery within our local area, ensuring your parts arrive quickly, safely, and hassle-free.
90 Days Warranty
90-day warranty for non-performance engines, 30 days for performance. Covers internal parts, excludes labor. Read more
Pickup at JDM SEATTLE
Usually ready in 1 hour View store information
Product Information
Toyota Century / Supra 1GZ-FE JDM Engine | 5.0L V12 DOHC Dual VVT-i Motor
| Feature | Details |
| Engine Code | 1GZ-FE |
| Displacement | 5.0 Liters (4,996 cc) |
| Configuration | 60° V12 DOHC 48-Valve |
| Valvetrain | Dual VVT-i (Variable Valve Timing with intelligence) |
| Horsepower | 276–295 hp (Gentleman's Agreement restricted) |
| Torque | 355 lb-ft @ 4,000 rpm |
| Redline | 6,000 RPM |

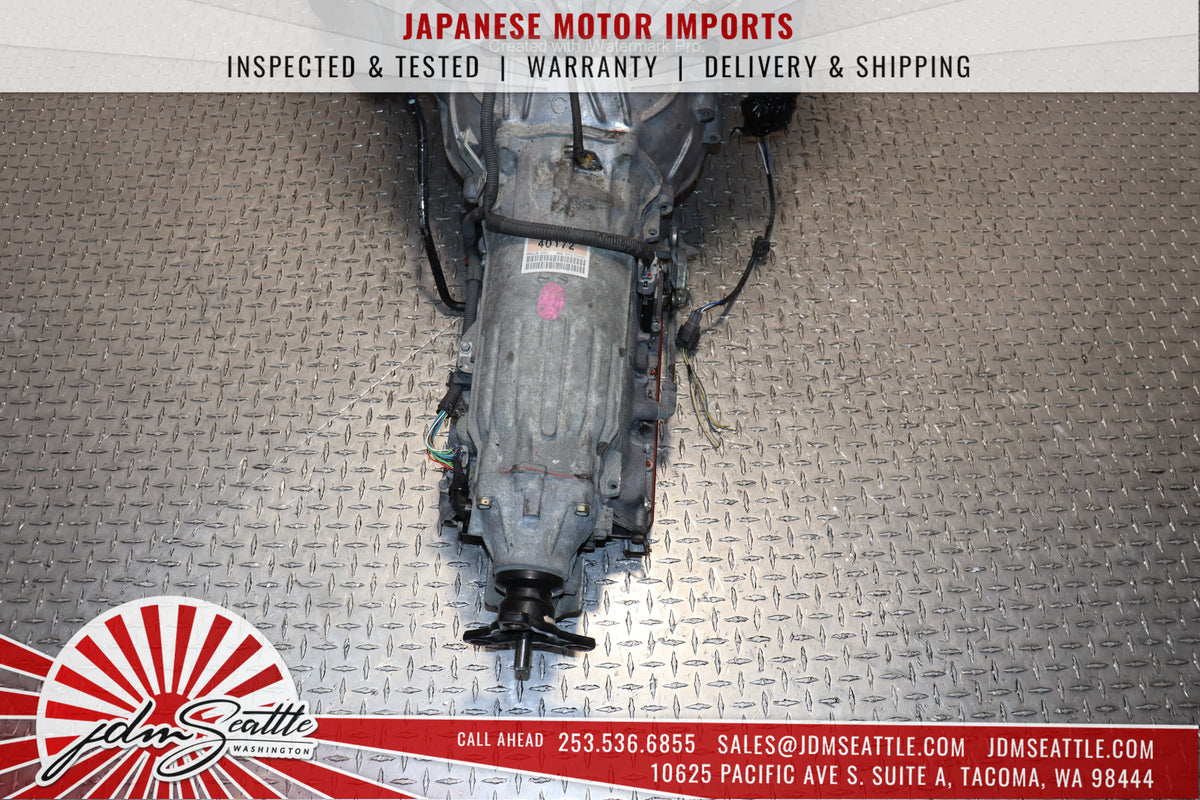

| Transmission | 4-Speed (1997-2004) or 6-Speed (2005+) Automatic |
Vehicle Fitments & Swap Potential
This 1GZ-FE powertrain is the primary choice for:
-
1997-2017 Toyota Century (GZG50): Direct OEM replacement.
-
Toyota Supra (A80/MK4) Swap: The legendary "Top Secret" style V12 conversion.
-
Custom Restomods: A popular choice for high-end Toyota Land Cruiser (J80/J100) and Lexus LS conversions.
Technical Insight: The 1GZ-FE features two independent ECUs (one for each 6-cylinder bank), allowing the engine to run as an inline-6 in the event of a sensor failure—a testament to its "failure-is-not-an-option" design.
Installation & Technical Notes
Due to the complexity of a 12-cylinder engine, please adhere to these technical guidelines:
-
Dual ECU Management: For custom swaps (Supra/LS), we strongly recommend utilizing a standalone engine management system (e.g., Haltech, MaxxECU, or Motec) to simplify the wiring and unlock the true power potential, which can easily exceed 500+ HP with bolt-ons.
-
Oil System: The 1GZ-FE utilizes a large oil capacity. Ensure the oil cooler lines are properly flushed and that high-quality 5W-30 or 0W-30 synthetic oil is used to maintain the VVT-i phasers.
-
Physical Dimensions: Measuring approximately 32 inches long, this engine is a tight fit for most engine bays. Ensure your chassis can accommodate the length and the 60° bank angle.
-
Essential Maintenance: We recommend replacing the following during the swap:
-
Spark Plugs: 12x NGK Iridium plugs (BKR6EIX-11).
-
Gaskets: Intake manifold gaskets and valve cover gaskets (highly recommended as they are difficult to access once installed).
-
Serpentine Belt: Replace the main drive belt and inspect the hydraulic fan pump (if equipped).
-
-
Fuel Requirement: 91+ Octane Premium fuel is required to ensure the knock sensors do not pull timing on this high-displacement assembly.
